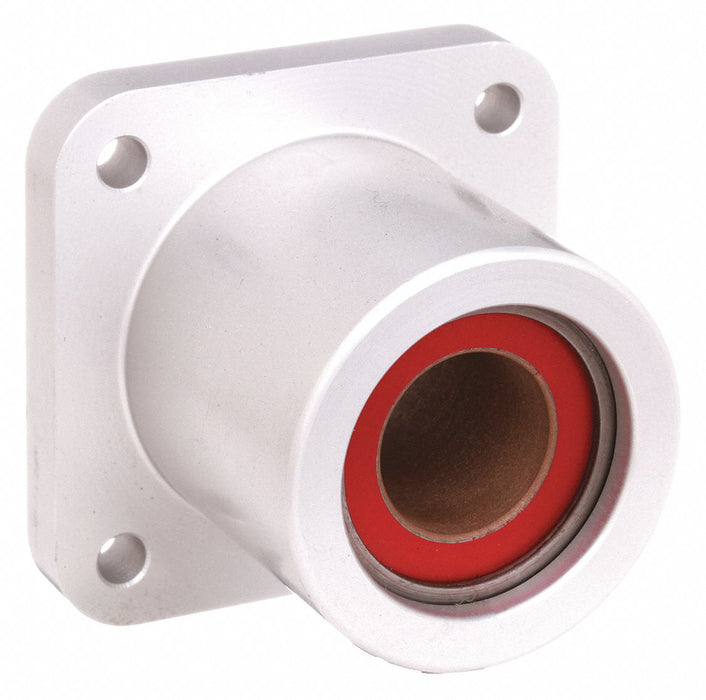

PBC Linear SFP16 Mounted Linear Bearing, Single, Self-Aligning, 1 in Bore, Frelon Gold Liner

PBC Linear SFP16 Mounted Linear Bearing, Single, Self-Aligning, 1 in Bore, Frelon Gold Liner

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 1 lbs

$263.47 - $263.47
$263.47
$263.47 - $263.47
$263.47

Mounted Linear Bearing, Inside Diameter 1 in, Outside Diameter 2 1/4 in, Flange Width 2.75 in, Overall Length 2 13/16 in, Dynamic Load Capacity 7,050 lbf, Flange Thickness 0.5 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 3,810 lbf, Steady State Speed 5 fps, Housing Style Single, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F

Material Aluminum
Dynamic Load Capacity (N) 7,050 lbf
Bearing Type Plain
Temp. Range (F) 0 - 400
Locking Type Retaining Ring
Dynamic Load Capacity (Lb.) 7,050 lb
Lubrication Self Lubricating
Retaining Ring External
Liner Frelon(TM) Gold
Static Load Capacity (N) 3,810 lbf
Static Load Capacity (Lb.) 3,810 lb
Accelerated Speed 14 fps
Self-Alignment Self-Aligning
Steady State Speed 5 fps
Type Square Flanged
Finish Anodized
Series Simplicity
System of Measurement Inch
Housing Style Single
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Static Load Capacity 3,810 lbf
Dynamic Load Capacity 7,050 lbf
Liner Material Frelon (TM) Gold
Country of Origin United States
