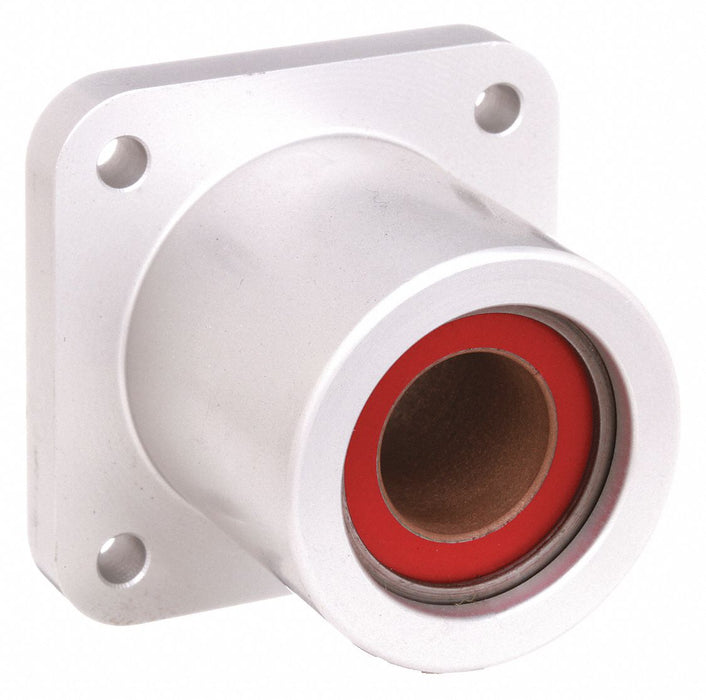

PBC Linear SFP12 Mounted Linear Bearing, Single, Self-Aligning, 3/4 in Bore, Frelon Gold Liner

PBC Linear SFP12 Mounted Linear Bearing, Single, Self-Aligning, 3/4 in Bore, Frelon Gold Liner

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.5 lbs

$193.38 - $193.38
$193.38
$193.38 - $193.38
$193.38

Mounted Linear Bearing, Inside Diameter 3/4 in, Outside Diameter 1 3/4 in, Flange Width 2.38 in, Overall Length 2 1/16 in, Dynamic Load Capacity 3,810 lbf, Flange Thickness 0.375 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 2,940 lbf, Steady State Speed 5 fps, Housing Style Single, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F

Material Aluminum
Dynamic Load Capacity (N) 3,810 lbf
Dynamic Load Capacity (Lb.) 3,810 lb
Locking Type Retaining Ring
Retaining Ring External
Steady State Speed 5 fps
Static Load Capacity (Lb.) 2,940 lb
Accelerated Speed 14 fps
Static Load Capacity (N) 2,940 lbf
Lubrication Self Lubricating
Liner Frelon(TM) Gold
Bearing Type Plain
Temp. Range (F) 0 - 400
Self-Alignment Self-Aligning
Finish Anodized
Type Square Flanged
System of Measurement Inch
Housing Style Single
Series Simplicity
Minimum Operating Temperature -400 Degrees F
Maximum Operating Temperature 400 Degrees F
Static Load Capacity 2,940 lbf
Dynamic Load Capacity 3,810 lbf
Liner Material Frelon (TM) Gold
Country of Origin United States
