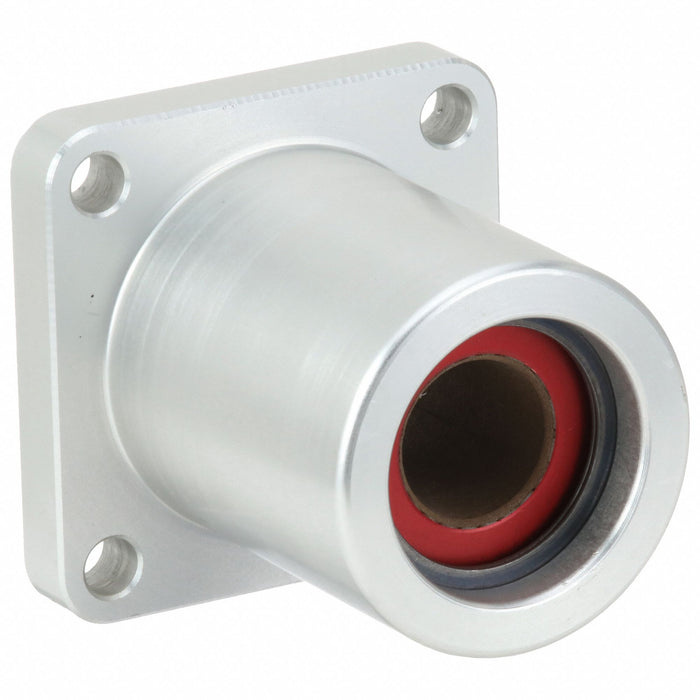

PBC Linear SFP08 Mounted Linear Bearing, Single, Self-Aligning, 1/2 in Bore, Frelon Gold Liner

PBC Linear SFP08 Mounted Linear Bearing, Single, Self-Aligning, 1/2 in Bore, Frelon Gold Liner

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.15 lbs

$169.81 - $169.81
$169.81
$169.81 - $169.81
$169.81

Mounted Linear Bearing, Inside Diameter 1/2 in, Outside Diameter 1 1/4 in, Flange Width 1.63 in, Overall Length 1 11/16 in, Dynamic Load Capacity 1,950 lbf, Flange Thickness 0.25 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 1,950 lbf, Steady State Speed 5 fps, Housing Style Single, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F

Material Aluminum
Lubrication Self Lubricating
Dynamic Load Capacity (N) 1,950 lbf
Retaining Ring External
Accelerated Speed 14 fps
Bearing Type Plain
Steady State Speed 5 fps
Temp. Range (F) 0 - 400
Static Load Capacity (Lb.) 1,950 lb
Dynamic Load Capacity (Lb.) 1,950 lb
Liner Frelon(TM) Gold
Locking Type Retaining Ring
Self-Alignment Self-Aligning
Static Load Capacity (N) 1,950 lbf
Type Square Flanged
Finish Anodized
System of Measurement Inch
Minimum Operating Temperature -400 Degrees F
Maximum Operating Temperature 400 Degrees F
Series Simplicity
Housing Style Single
Liner Material Frelon (TM) Gold
Country of Origin United States
