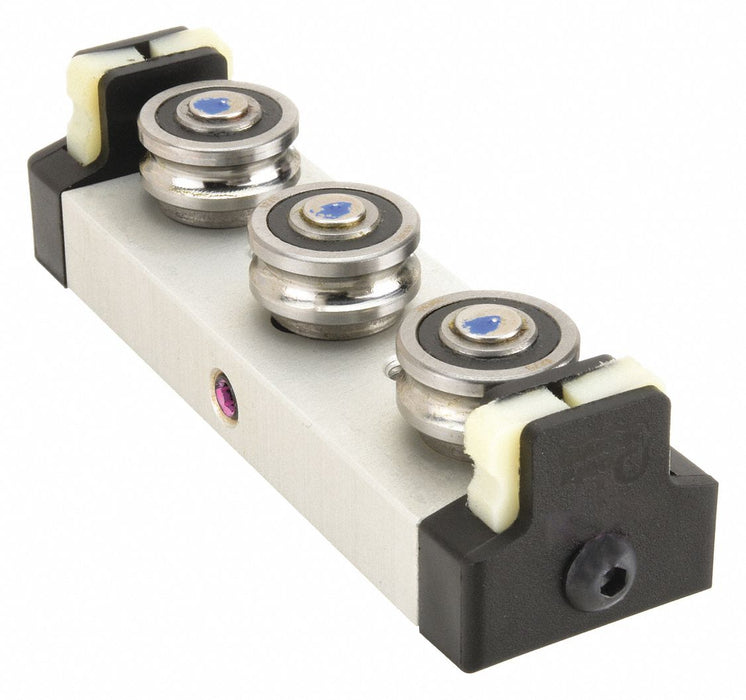

PBC Linear RRS45 Linear Slide Roller Carriage, Redi-Rail Series, Size 45, 3-Roller Assembly

PBC Linear RRS45 Linear Slide Roller Carriage, Redi-Rail Series, Size 45, 3-Roller Assembly

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.55 lbs

$288.91 - $288.91
$288.91
$288.91 - $288.91
$288.91

Linear Slide Roller Carriage, Carriage Height 25.8 mm, Carriage Length 117 mm, Carriage Width 38.1 mm, Carriage Material Aluminum, Roller Material Stainless Steel, Radial Load - Maximum 2,660 lbf, Axial Load - Maximum 827 lbf, Manufacturer Size 45, Dynamic Load Capacity 6,606 N, Requires Lubrication Lubricant Not Required, Carriage Type Roller, For Rail Width 45 mm, For Use With Redi-Rail Sliders, Static Load Capacity 990 lbf, Combined Carriage and Rail Height 33 mm, Series RRS

Type Redi-Rail
Roller Material Stainless Steel
Carriage Material Aluminum
Roller Type Gothic
Temp. Range (F) 0 to 180
For Use With Redi-Rail Sliders
Carriage Type Roller
Static Load Capacity (Lb.) 990
Carriage Finish Anodized
Roller Finish Polished
Max. Speed (In/Sec) 276
Dynamic Load Capacity (Lb.) 990
Series RRS
Number of Rollers 3
Bearing Type Ball
Requires Lubrication Lubricant Not Required
Country of Origin United States
