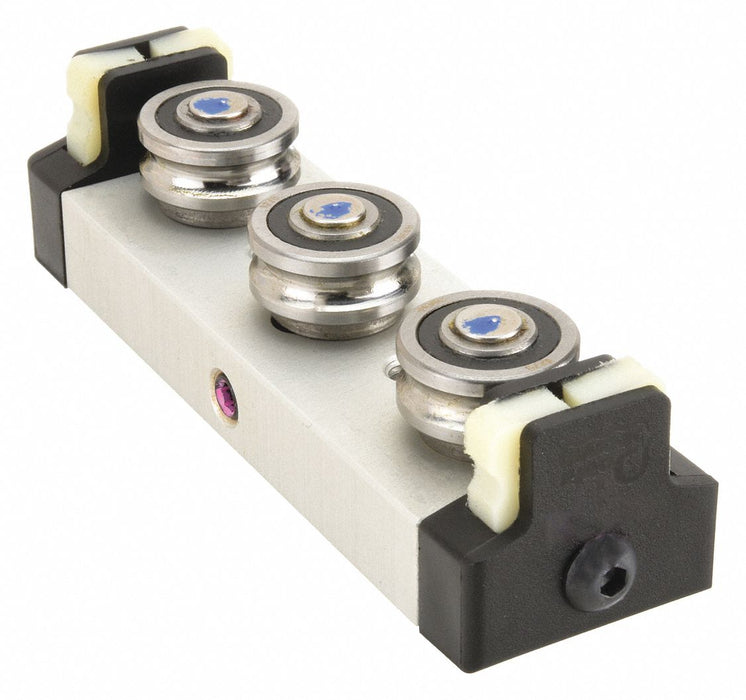

PBC Linear RRS30 Linear Slide Roller Carriage, Redi-Rail Series, Size 30, 3-Roller Assembly

PBC Linear RRS30 Linear Slide Roller Carriage, Redi-Rail Series, Size 30, 3-Roller Assembly

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.4 lbs

$269.84 - $269.84
$269.84
$269.84 - $269.84
$269.84

Linear Slide Roller Carriage, Carriage Height 22.6 mm, Carriage Length 86.9 mm, Carriage Width 25.4 mm, Carriage Material Aluminum, Roller Material Stainless Steel, Radial Load - Maximum 1,002 lbf, Axial Load - Maximum 330 lbf, Manufacturer Size 30, Dynamic Load Capacity 2,160 N, Requires Lubrication Lubricant Not Required, Carriage Type Roller, For Rail Width 30 mm, For Use With Redi-Rail Sliders, Static Load Capacity 323 lbf, Combined Carriage and Rail Height 28 mm, Series RRS

Type Redi-Rail
Roller Material Stainless Steel
Carriage Material Aluminum
Carriage Finish Anodized
Roller Finish Polished
Carriage Type Roller
Temp. Range (F) 0 to 180
Static Load Capacity (Lb.) 323
Dynamic Load Capacity (Lb.) 323
Roller Type Gothic
Max. Speed (In/Sec) 197
Series RRS
Country of Origin United States
