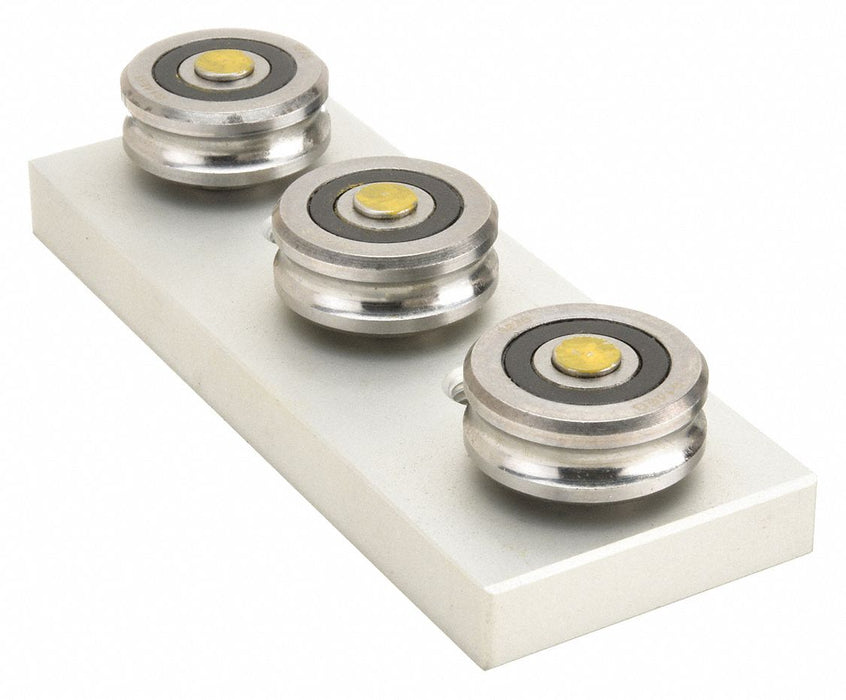

PBC Linear RRS18 Linear Slide Roller Carriage, Redi-Rail Series, Size 18, 3-Roller Assembly

PBC Linear RRS18 Linear Slide Roller Carriage, Redi-Rail Series, Size 18, 3-Roller Assembly

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.8 lbs

$275.13 - $275.13
$275.13
$275.13 - $275.13
$275.13

Linear Slide Roller Carriage, Carriage Height 20.9 mm, Carriage Length 114.3 mm, Carriage Width 38.1 mm, Carriage Material Aluminum, Roller Material Stainless Steel, Radial Load - Maximum 850 lbf, Axial Load - Maximum 168 lbf, Manufacturer Size 18, Dynamic Load Capacity 1,032 lbf, Requires Lubrication Lubricant Not Required, Carriage Type Roller, For Rail Width 30.251 mm, For Use With Redi-Rail Sliders, Static Load Capacity 232 lbf, Combined Carriage and Rail Height 28.575 mm, Series RRS

Type Redi-Rail
Roller Material Stainless Steel
Carriage Material Aluminum
Dynamic Load Capacity (Lb.) 1,032
Static Load Capacity (Lb.) 232
Temp. Range (F) 0 to 180
Roller Type Gothic
Carriage Type Roller
Max. Speed (In/Sec) 160
Roller Finish Polished
For Use With Redi-Rail Sliders
Carriage Finish Anodized
Number of Rollers 3
Bearing Type Ball
Number of Mounting Holes 2
Bearing Retention Bearings Retained
Operating Temperature - Maximum 176 Degrees F
Includes Lubricator Lubricator Included
Series RRS
Dynamic Load Capacity 1,032 lbf
Load Direction Axial, Radial
Number of Bearing Rows 2
Speed - Maximum 160 in/sec
Includes Wipers Wipers Not Included
Radial Load - Maximum 850 lbf
Requires Lubrication Lubricant Not Required
Operating Temperature - Minimum 0 Degrees F
Static Load Capacity 232 lbf
Axial Load - Maximum 168 lbf
Includes Seals Seals Included
System of Measurement Metric
Country of Origin United States
