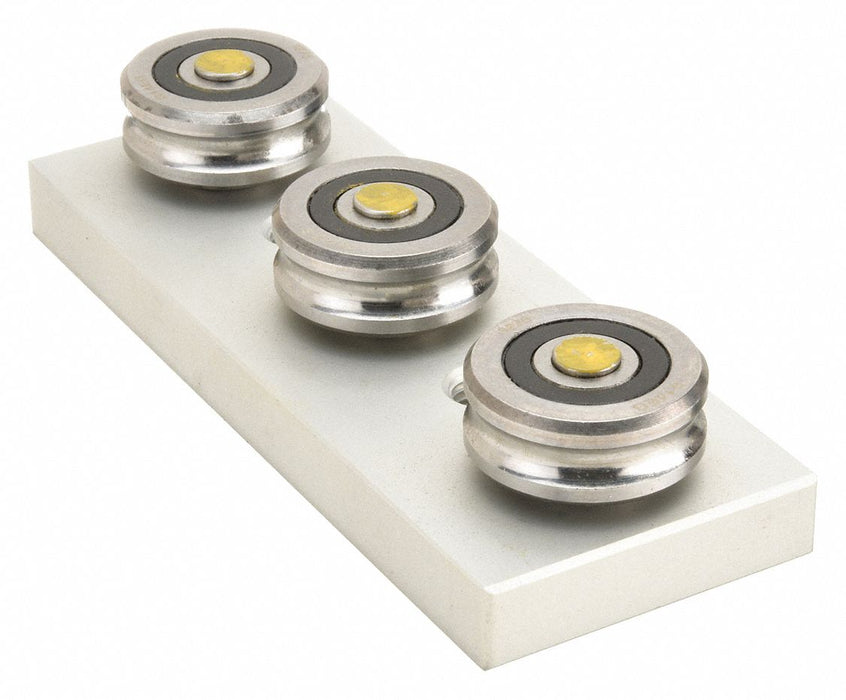

PBC Linear RRS14 Linear Slide Roller Carriage, Redi-Rail Series, Size 14, 3-Roller Assembly

PBC Linear RRS14 Linear Slide Roller Carriage, Redi-Rail Series, Size 14, 3-Roller Assembly

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.45 lbs

$214.39 - $214.39
$214.39
$214.39 - $214.39
$214.39

Linear Slide Roller Carriage, Carriage Height 0.702 in, Carriage Length 3.25 in, Carriage Width 1.25 in, Carriage Material Aluminum, Roller Material Stainless Steel, Radial Load - Maximum 340 lbf, Axial Load - Maximum 79 lbf, Manufacturer Size 14, Dynamic Load Capacity 421 lbf, Requires Lubrication Lubricant Not Required, Carriage Type Roller, For Rail Width 1.32 in, For Use With RR14-012.000, RR14-024.000, Static Load Capacity 95 lbf, Combined Carriage and Rail Height 0.938 in, Series RRS

Type Redi-Rail
Roller Material Stainless Steel
Carriage Material Aluminum
Temp. Range (F) 0 to 180
Dynamic Load Capacity (Lb.) 421
Max. Speed (In/Sec) 100
Roller Type Gothic
Roller Finish Polished
Carriage Finish Anodized
For Use With RR14-012.000, RR14-024.000
Static Load Capacity (Lb.) 95
Carriage Type Roller
Minimum Operating Temperature 0 Degrees F
Number of Rollers 3
Maximum Speed 100 in/sec
Bearing Type Ball
Number of Mounting Holes 2
Operating Temperature - Minimum 0 Degrees F
Number of Bearing Rows 2
Includes Lubricator Lubricator Included
Speed - Maximum 100 in/sec
Includes Wipers Wipers Not Included
Static Load Capacity 95 lbf
Requires Lubrication Lubricant Not Required
Includes Seals Seals Included
Series RRS
Dynamic Load Capacity 421 lbf
Axial Load - Maximum 79 lbf
Bearing Retention Bearings Retained
Operating Temperature - Maximum 176 Degrees F
Radial Load - Maximum 340 lbf
System of Measurement Inch
Load Direction Axial, Radial
Country of Origin United States
