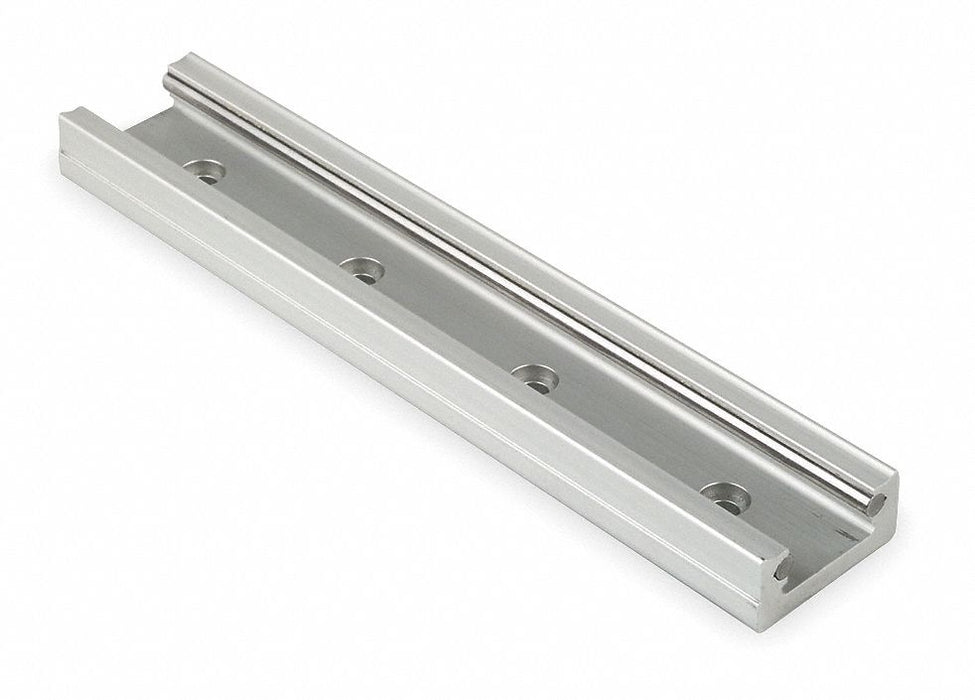

PBC Linear RR65-0480 Linear Guide Rail, Redi-Rail, Size 65, 480 mm Length, 65 mm Width, Aluminum Alloy

PBC Linear RR65-0480 Linear Guide Rail, Redi-Rail, Size 65, 480 mm Length, 65 mm Width, Aluminum Alloy

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 3.98 lbs

$141.18 - $141.18
$141.18
$141.18 - $141.18
$141.18

Linear Guide Rail, Overall Length 480 mm, Overall Width 65 mm, Overall Height 28.6 mm, Rail Material Aluminum Alloy, Manufacturer Size 65, Number of Mounting Holes 6, Rail Finish Aluminum w/Steel Insert, Rail Type Slide, System of Measurement Metric, For Use With Redi-Rail Sliders, Mounting Hole Center to Center 80 mm, Mounting Hole Center to Shaft End 40 mm, Channel Material Steel, Series RR

Type Redi-Rail
Rail Material Aluminum Alloy
Rail Finish Aluminum w/Steel Insert
Raceway RC60 Steel Shaft
Temp. Range (F) 0 - 248
Channel Material Steel
Screw Type Low Profile Socket Head Cap
Number of Rail Holes 6
Mounting Hole from Shaft End 40 mm
Mounting Hole Center to Center 80 mm
Mounting Hole Center to Shaft End 40 mm
Mounting Hole Size M6
Overall Length 480 mm
Overall Width 65 mm
Overall Height 28.6 mm
Weight 1.804 kg
For Use With Redi-Rail Sliders
Includes Rollers Rollers Included
Load Direction Axial, Radial
Rail Type Slide
Series RR
System of Measurement Metric
Country of Origin United States
