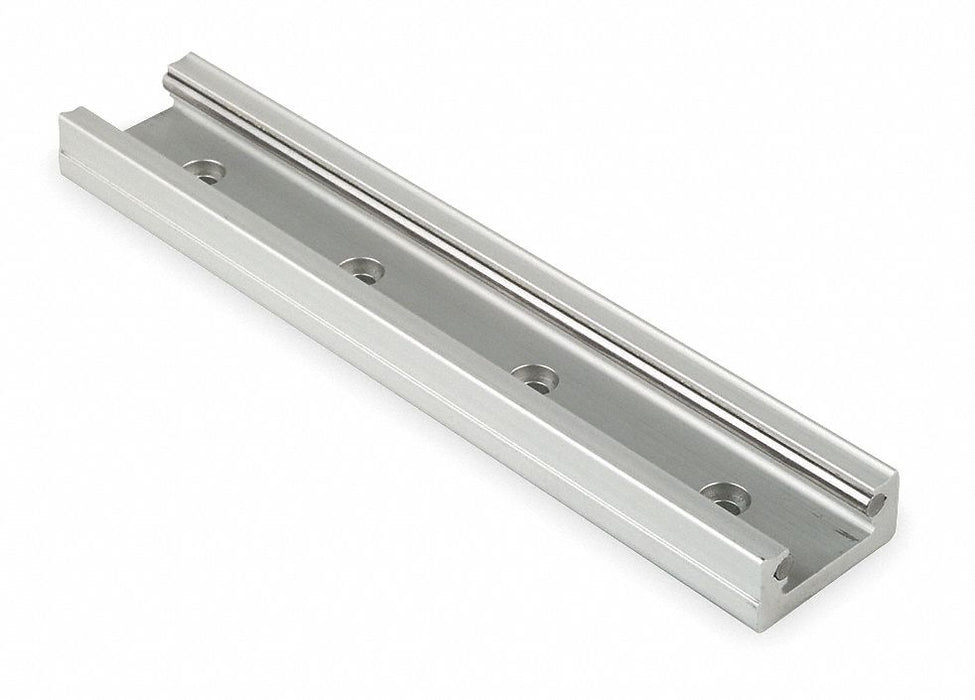

PBC Linear RR45-0420 Linear Guide Rail, Redi-Rail, Size 45, 420 mm Length, 45 mm Width, Aluminum Alloy

PBC Linear RR45-0420 Linear Guide Rail, Redi-Rail, Size 45, 420 mm Length, 45 mm Width, Aluminum Alloy

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.59 lbs

$91.40 - $91.40
$91.40
$91.40 - $91.40
$91.40

Linear Guide Rail, Overall Length 420 mm, Overall Width 45 mm, Overall Height 20.4 mm, Rail Material Aluminum Alloy, Manufacturer Size 45, Number of Mounting Holes 7, Rail Finish Aluminum w/Steel Insert, Rail Type Slide, System of Measurement Metric, For Use With Redi-Rail Sliders, Mounting Hole Center to Center 60 mm, Mounting Hole Center to Shaft End 30 mm, Channel Material Steel, Series RR

Type Redi-Rail
Rail Material Aluminum Alloy
Rail Finish Aluminum w/Steel Insert
Raceway RC60 Steel Shaft
Temp. Range (F) 0 - 248
Channel Material Steel
Screw Type Low Profile Socket Head Cap
Number of Rail Holes 7
Mounting Hole from Shaft End 30 mm
Mounting Hole Center to Center 60 mm
Mounting Hole Center to Shaft End 30 mm
Mounting Hole Size M6
Overall Length 420 mm
Overall Width 45 mm
Overall Height 20.4 mm
Weight 0.722 kg
For Use With Redi-Rail Sliders
Includes Rollers Rollers Included
Load Direction Axial, Radial
Rail Type Slide
Series RR
System of Measurement Metric
Country of Origin United States
