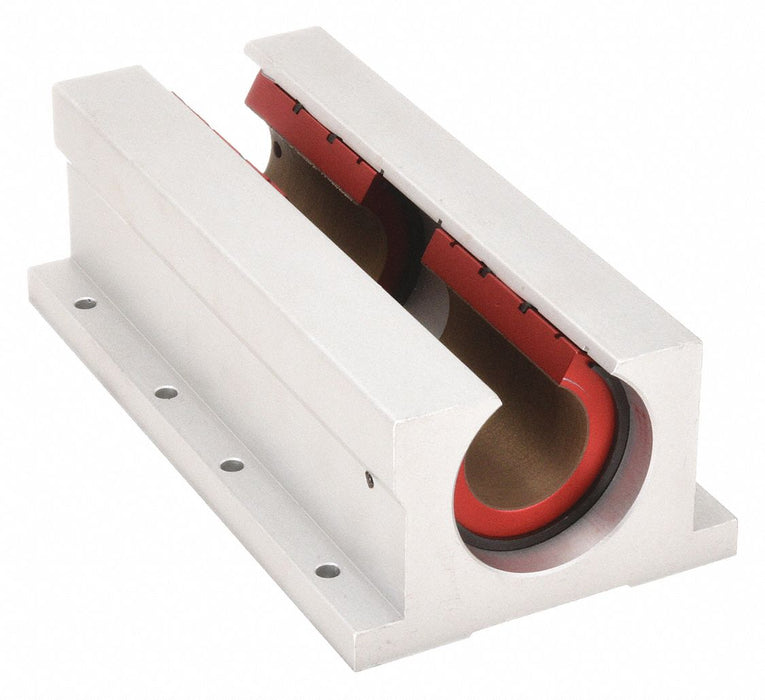

PBC Linear PWN32 Mounted Linear Bearing, Twin, Open Pillow Block, 2 in Inside Dia, Frelon Gold

PBC Linear PWN32 Mounted Linear Bearing, Twin, Open Pillow Block, 2 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 12.5 lbs

$1,444.18 - $1,444.18
$1,444.18
$1,444.18 - $1,444.18
$1,444.18

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 10 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 50,100 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size 3/8 in, Finish Clear Anodize

Material Aluminum Alloy
Locking Type Roll Pin
Temp. Range (F) 0 - 400
Accelerated Speed 14 Feet/Second
Steady State Speed 5 fps
Bearing Type Plain
Dynamic Load Capacity (Lb.) 25,050 lb
Lubrication Self Lubricating
Retaining Ring External
Liner Frelon(TM) Gold
Slot Angle (Degrees) 60 Degrees
Static Load Capacity (Lb.) 25,050 lbf
Type Open Pillow Block
Mounting Surface to Shaft Center (In.) 2.125 in
Self-Alignment Self-Aligning
Dynamic Load Capacity (N) 25,050 lbf
Static Load Capacity (N) 25,050 lbf
Finish Clear Anodize
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Series PWN
System of Measurement Inch
Housing Style Twin
Mounting Surface to Shaft Center 2.125 in
Dynamic Load Capacity 25,050 lbf
Static Load Capacity 50,100 lbf
Slot Angle 60 Degrees
Liner Material Frelon(TM) Gold
Pillow Block Type Open
Country of Origin United States
