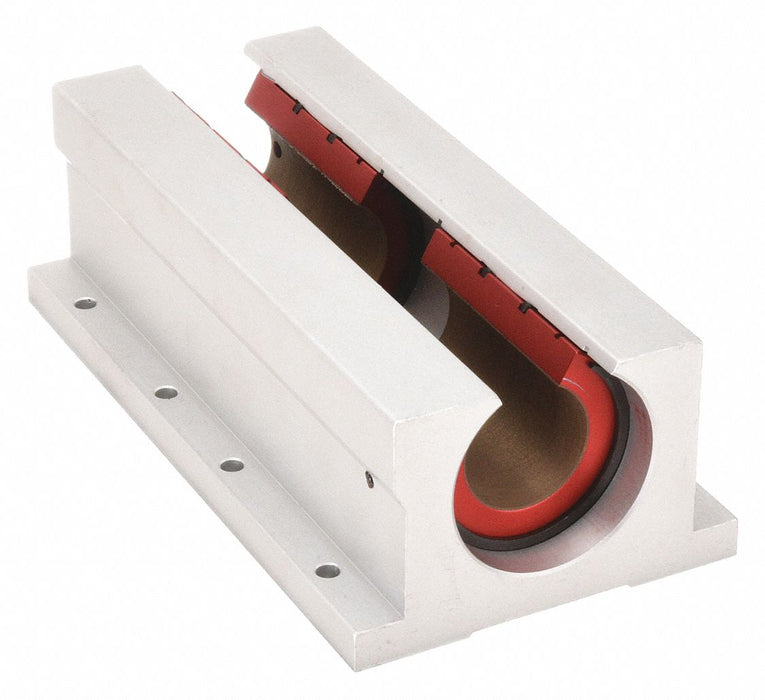

PBC Linear PWN20 Mounted Linear Bearing, Twin, Open Pillow Block, 1 1/4 in Inside Dia, Frelon Gold

PBC Linear PWN20 Mounted Linear Bearing, Twin, Open Pillow Block, 1 1/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 4.85 lbs

$765.82 - $765.82
$765.82
$765.82 - $765.82
$765.82

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 1/4 in, Overall Length 7 1/2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 20,580 lbf, Dynamic Load Capacity 10,830 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size #10, Finish Clear Anodize

Material Aluminum Alloy
Retaining Ring External
Self-Alignment Self-Aligning
Slot Angle (Degrees) 60 Degrees
Dynamic Load Capacity (Lb.) 10,830 lb
Temp. Range (F) 0 - 400
Liner Frelon(TM) Gold
Static Load Capacity (N) 10,290 lbf
Steady State Speed 5 fps
Dynamic Load Capacity (N) 10,830 lbf
Bearing Type Plain
Mounting Surface to Shaft Center (In.) 1.5 in
Lubrication Self Lubricating
Accelerated Speed 14 Feet/Second
Type Open Pillow Block
Static Load Capacity (Lb.) 10,290 lb
Locking Type Roll Pin
Finish Clear Anodize
Housing Style Twin
Minimum Operating Temperature -400 Degrees F
Series PWN
System of Measurement Inch
Maximum Operating Temperature 400 Degrees F
Dynamic Load Capacity 10,830 lbf
Static Load Capacity 20,580 lbf
Mounting Surface to Shaft Center 1.5 in
Liner Material Frelon(TM) Gold
Pillow Block Type Open
Slot Angle 60 Degrees
Country of Origin United States
