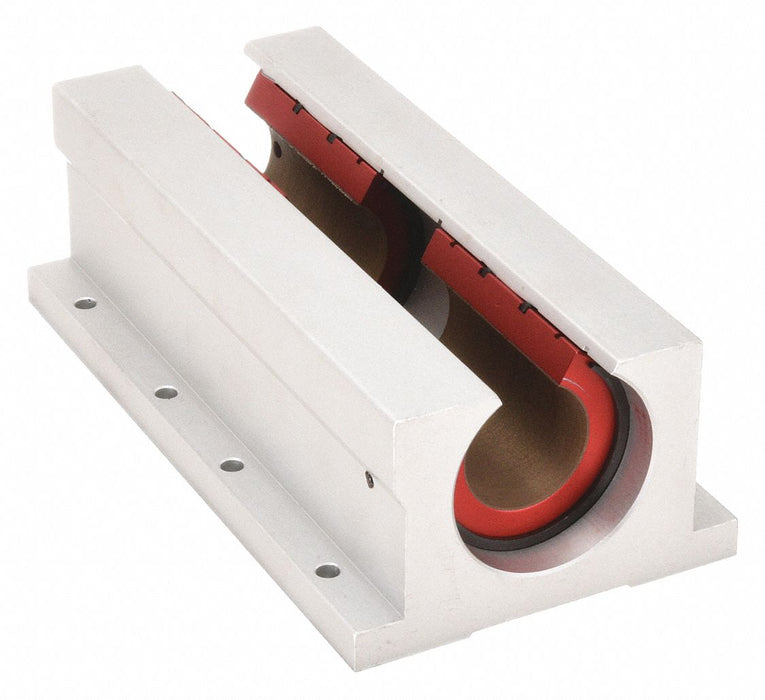

PBC Linear PWN16 Mounted Linear Bearing, Twin, Open Pillow Block, 1 in Inside Dia, Frelon Gold

PBC Linear PWN16 Mounted Linear Bearing, Twin, Open Pillow Block, 1 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 2.1 lbs

$539.41 - $539.41
$539.41
$539.41 - $539.41
$539.41

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 in, Overall Length 6 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 14,100 lbf, Dynamic Load Capacity 7,050 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size #10, Finish Clear Anodize, Overall Height 2 in

Material Aluminum Alloy
Dynamic Load Capacity (N) 7,050 lbf
Temp. Range (F) 0 - 400
Slot Angle (Degrees) 60 Degrees
Bearing Type Plain
Self-Alignment Self-Aligning
Dynamic Load Capacity (Lb.) 7,050 lb
Mounting Surface to Shaft Center (In.) 1.187 in
Liner Frelon(TM) Gold
Lubrication Self Lubricating
Static Load Capacity (Lb.) 7,050 lb
Steady State Speed 5 fps
Type Open Pillow Block
Accelerated Speed 14 Feet/Second
Locking Type Roll Pin
Retaining Ring External
Static Load Capacity (N) 7,050 lbf
Finish Clear Anodize
Series PWN
System of Measurement Inch
Maximum Operating Temperature 400 Degrees F
Housing Style Twin
Minimum Operating Temperature -400 Degrees F
Static Load Capacity 14,100 lbf
Dynamic Load Capacity 7,050 lbf
Mounting Surface to Shaft Center 1.187 in
Slot Angle 60 Degrees
Liner Material Frelon(TM) Gold
Pillow Block Type Open
Country of Origin United States
