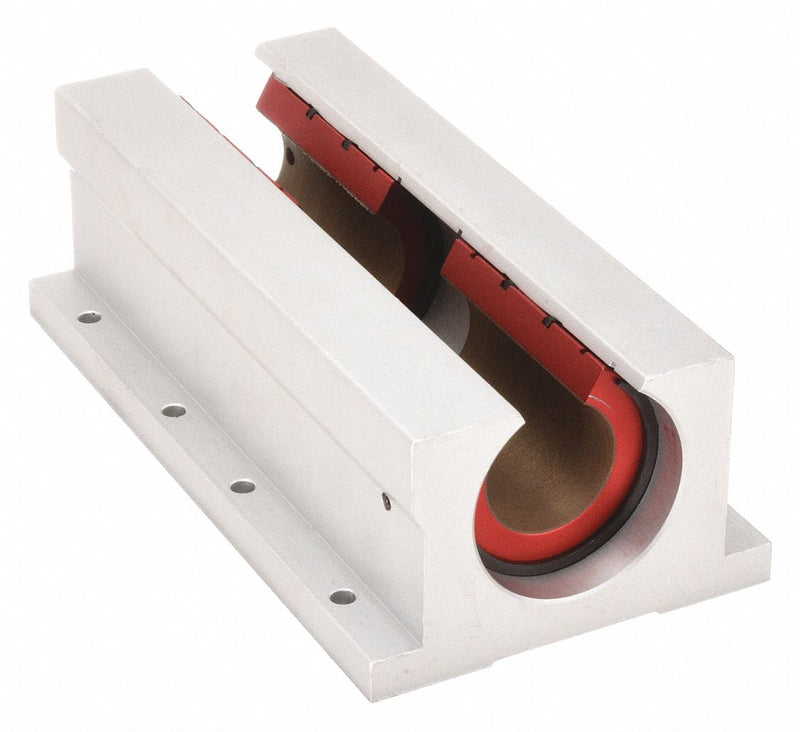

PBC Linear PWN10 Mounted Linear Bearing, Twin, Open Pillow Block, 5/8 in Inside Dia, Frelon Gold

PBC Linear PWN10 Mounted Linear Bearing, Twin, Open Pillow Block, 5/8 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.85 lbs

$333.41 - $333.41
$333.41
$333.41 - $333.41
$333.41

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 5/8 in, Overall Length 4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 2,940 lbf, Dynamic Load Capacity 2,940 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size #8, Finish Clear Anodize

Material Aluminum Alloy
Steady State Speed 5 fps
Self-Alignment Self-Aligning
Dynamic Load Capacity (N) 2,940 lbf
Temp. Range (F) 0 - 400
Bearing Type Plain
Locking Type Roll Pin
Dynamic Load Capacity (Lb.) 2,940 lb
Type Open Pillow Block
Retaining Ring External
Static Load Capacity (Lb.) 2,940 lb
Mounting Surface to Shaft Center (In.) 0.875 in
Liner Frelon(TM) Gold
Lubrication Self Lubricating
Static Load Capacity (N) 2,940 lbf
Accelerated Speed 14 Feet/Second
Slot Angle (Degrees) 60 Degrees
Finish Clear Anodize
Series PWN
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
System of Measurement Inch
Housing Style Twin
Mounting Surface to Shaft Center 0.875 in
Dynamic Load Capacity 2,940 lbf
Static Load Capacity 2,940 lbf
Pillow Block Type Open
Slot Angle 60 Degrees
Liner Material Frelon(TM) Gold
Country of Origin United States
