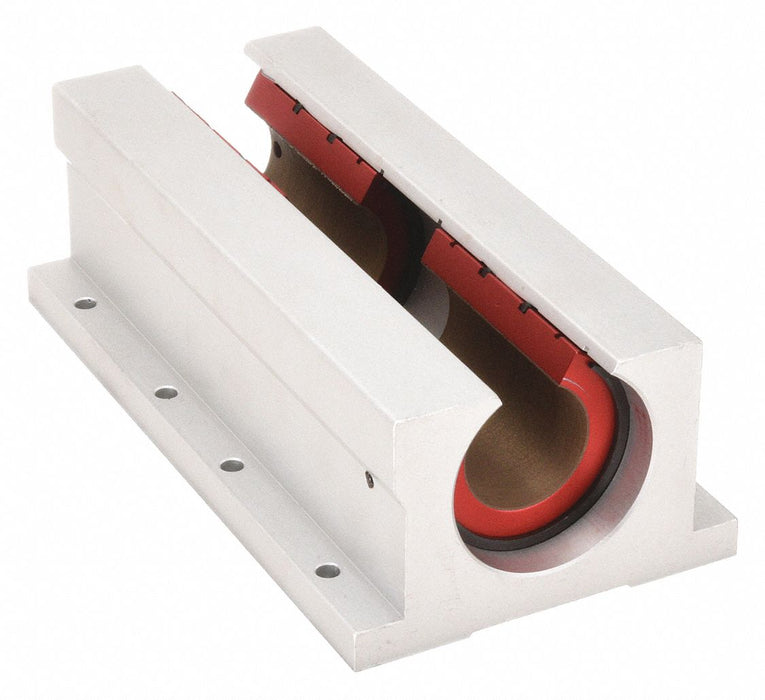

PBC Linear PWN08 Mounted Linear Bearing, Twin, Open Pillow Block, 1/2 in Inside Dia, Frelon Gold

PBC Linear PWN08 Mounted Linear Bearing, Twin, Open Pillow Block, 1/2 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.4 lbs

$301.20 - $301.20
$301.20
$301.20 - $301.20
$301.20

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1/2 in, Overall Length 3 1/2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 1,950 lbf, Dynamic Load Capacity 1,950 lbf, Steady State Speed 5 fps, Series PWN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size #6, Finish Clear Anodize

Material Aluminum Alloy
Retaining Ring External
Accelerated Speed 14 Feet/Second
Steady State Speed 5 fps
Mounting Surface to Shaft Center (In.) 0.687 in
Locking Type Roll Pin
Type Open Pillow Block
Self-Alignment Self-Aligning
Static Load Capacity (Lb.) 1,950 lb
Dynamic Load Capacity (Lb.) 1,950 lb
Static Load Capacity (N) 1,950 lbf
Slot Angle (Degrees) 60 Degrees
Bearing Type Plain
Dynamic Load Capacity (N) 1,950 lbf
Liner Frelon(TM) Gold
Lubrication Self Lubricating
Temp. Range (F) 0 - 400
Finish Clear Anodize
Series PWN
Maximum Operating Temperature 400 Degrees F
Housing Style Twin
Minimum Operating Temperature -400 Degrees F
System of Measurement Inch
Mounting Surface to Shaft Center 0.687 in
Dynamic Load Capacity 1,950 lbf
Static Load Capacity 1,950 lbf
Liner Material Frelon(TM) Gold
Pillow Block Type Open
Slot Angle 60 Degrees
Includes Seals Seals Not Included
Country of Origin United States
