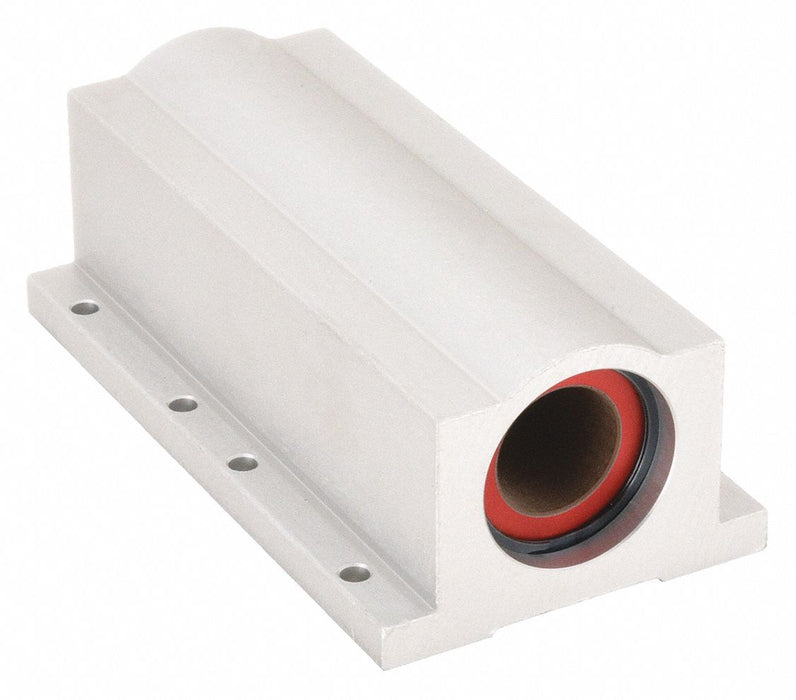

PBC Linear PW12 Mounted Linear Bearing, Twin, Closed Pillow Block, 3/4 in Inside Dia, Frelon Gold

PBC Linear PW12 Mounted Linear Bearing, Twin, Closed Pillow Block, 3/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 1.2 lbs

$278.51 - $278.51
$278.51
$278.51 - $278.51
$278.51

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 3/4 in, Overall Length 4 1/2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 7,620 lbf, Dynamic Load Capacity 3,810 lbf, Steady State Speed 5 fps, Series PW, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Twin, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #8, Overall Height 1 3/4 in

Material Aluminum Alloy
Mounting Surface to Shaft Center (In.) 0.937 in
Dynamic Load Capacity (Lb.) 3,810 lb
Liner Frelon(TM) Gold
Locking Type Retaining Ring
Dynamic Load Capacity (N) 3,810 lbf
Static Load Capacity (N) 7,620 lbf
Temp. Range (F) 0 - 400
Accelerated Speed 14 Feet/Second
Self-Alignment Self-Aligning
Bearing Type Plain
Lubrication Self Lubricating
Retaining Ring External
Type Closed Pillow Block
Steady State Speed 5 fps
Static Load Capacity (Lb.) 7,620 lb
System of Measurement Inch
Maximum Operating Temperature 400 Degrees F
Series PW
Housing Style Twin
Minimum Operating Temperature -400 Degrees F
Static Load Capacity 7,620 lbf
Mounting Surface to Shaft Center 0.937 in
Liner Material Frelon(TM) Gold
Dynamic Load Capacity 3,810 lbf
Pillow Block Type Closed
Country of Origin United States
