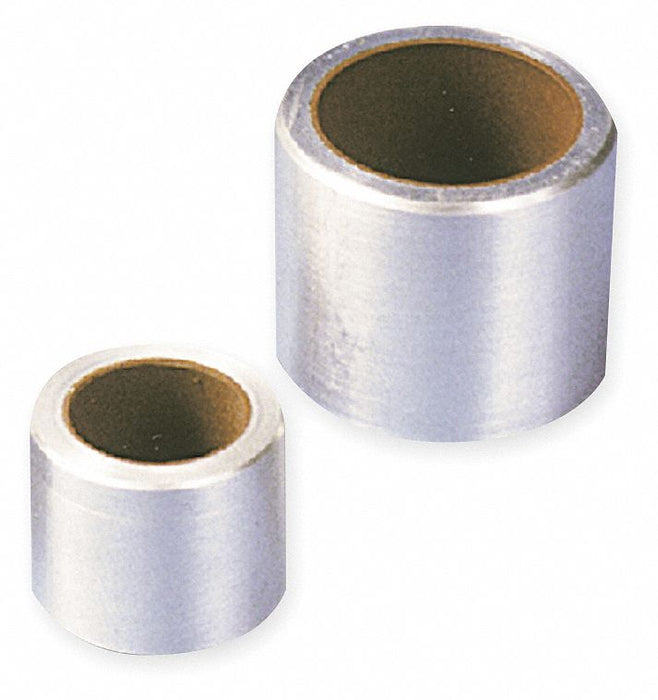

PBC Linear PSM2025-20 Linear Sleeve Bearing, 20 mm Inside Dia, 20 mm Lg, Frelon Gold, Precision

PBC Linear PSM2025-20 Linear Sleeve Bearing, 20 mm Inside Dia, 20 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.01 lbs

$83.42 - $83.42
$83.42
$83.42 - $83.42
$83.42

Linear Sleeve Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 20 mm, Outside Diameter 25.05 mm, Overall Length 20 mm, Static Load Capacity 8,237 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PSM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Recommended Housing Bore 25.05 mm

Material Aluminum
Lubrication Self Lubricating
Max. Pv 20,000 lb/sq in-fpm
Recommended Housing Bore 25.05 mm
Static Load Capacity 8,237 N
Liner Frelon(TM) Gold
Type Closed
Maximum Operating Temperature 400 Degrees F
System of Measurement Metric
Static Load Capacity (N) 1,852 lbf
Series PSM
Minimum Operating Temperature -400 Degrees F
Maximum PV 20,000 lb/sq in-fpm
Running Clearance Class Precision
Bearing Type Closed
Self-Lubrication Self-Lubricating
Country of Origin United States
