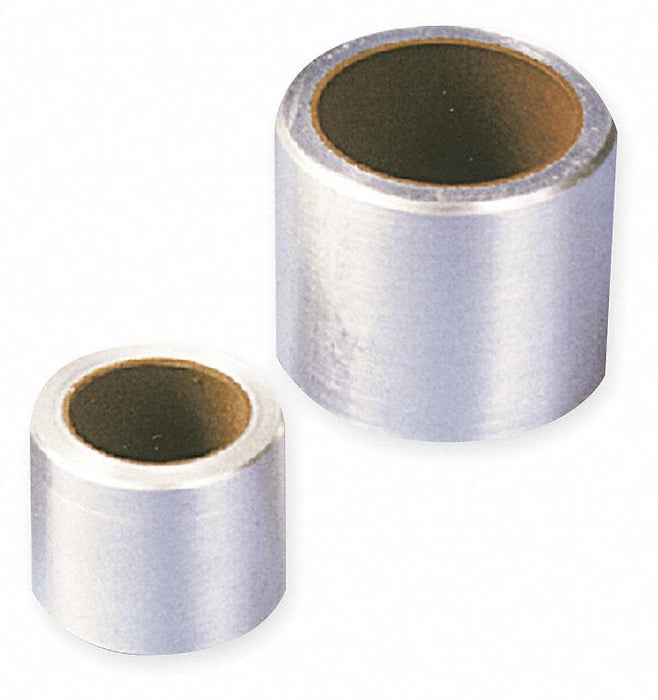

PBC Linear PS0305-02 Linear Sleeve Bearing, 3/16 in Inside Dia, 1/4 in Lg, Frelon Gold, Precision

PBC Linear PS0305-02 Linear Sleeve Bearing, 3/16 in Inside Dia, 1/4 in Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.02 lbs

$26.32 - $26.32
$26.32
$26.32 - $26.32
$26.32

Linear Sleeve Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/4 in, Outside Diameter 3/8 in, Overall Length 1/4 in, Static Load Capacity 130 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PS, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Recommended Housing Bore 0.314 in

Material Aluminum
Max. Pv 20,000 lb/sq in-fpm
Liner Frelon(TM) Gold
Recommended Housing Bore 0.314 in
Static Load Capacity 130 lbf
Number of Pieces 1500
Lubrication Self Lubricating
Type Closed
System of Measurement Inch
Maximum Operating Temperature 400 Degrees F
Static Load Capacity (N) 130 lbf
Minimum Operating Temperature -400 Degrees F
Series PS
Bearing Type Closed
Running Clearance Class Precision
Maximum PV 20,000 lb/sq in-fpm
Self-Lubrication Self-Lubricating
Country of Origin United States
