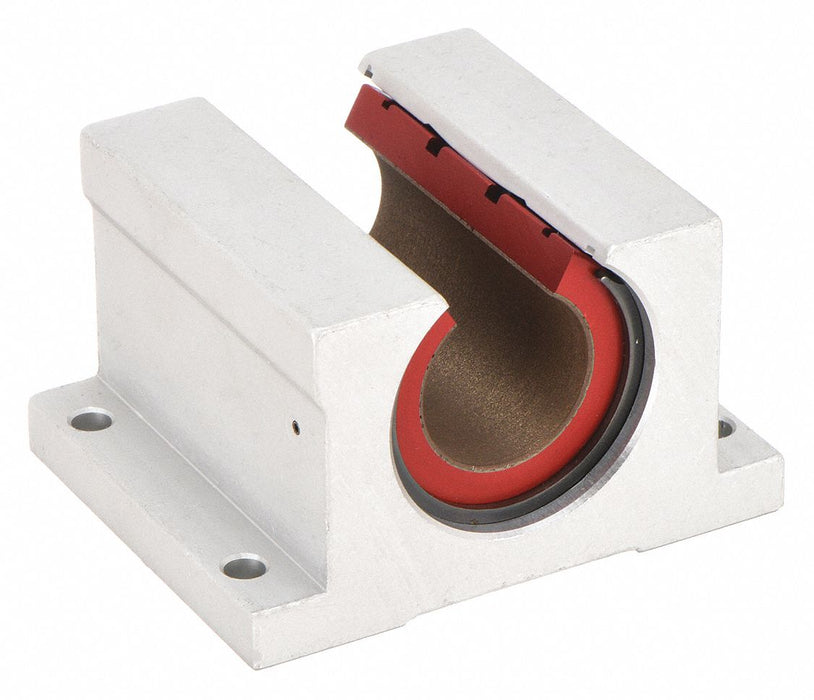

PBC Linear PN32 Mounted Linear Bearing, Single, Open Pillow Block, 2 in Inside Dia, Frelon Gold

PBC Linear PN32 Mounted Linear Bearing, Single, Open Pillow Block, 2 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 6 lbs

$710.89 - $710.89
$710.89
$710.89 - $710.89
$710.89

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 4 3/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 25,050 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size 3/8 in

Material Aluminum Alloy
Type Open Pillow Block
Mounting Surface to Shaft Center (In.) 2.125 in
Accelerated Speed 14 Feet/Second
Slot Angle (Degrees) 60 Degrees
Locking Type Retaining Ring, Roll Pin
Dynamic Load Capacity (N) 25,050 lbf
Steady State Speed 5 fps
Bearing Type Plain
Retaining Ring External
Lubrication Self Lubricating
Liner Frelon(TM) Gold
Static Load Capacity (N) 25,050 lbf
Static Load Capacity (Lb.) 25,050 lb
Dynamic Load Capacity (Lb.) 25,050 lb
Self-Alignment Self-Aligning
Temp. Range (F) 0 - 400
System of Measurement Inch
Housing Style Single
Series PN
Minimum Operating Temperature -400 Degrees F
Maximum Operating Temperature 400 Degrees F
Slot Angle 60 Degrees
Liner Material Frelon(TM) Gold
Includes Seals Seals Not Included
Pillow Block Type Open
Country of Origin United States
