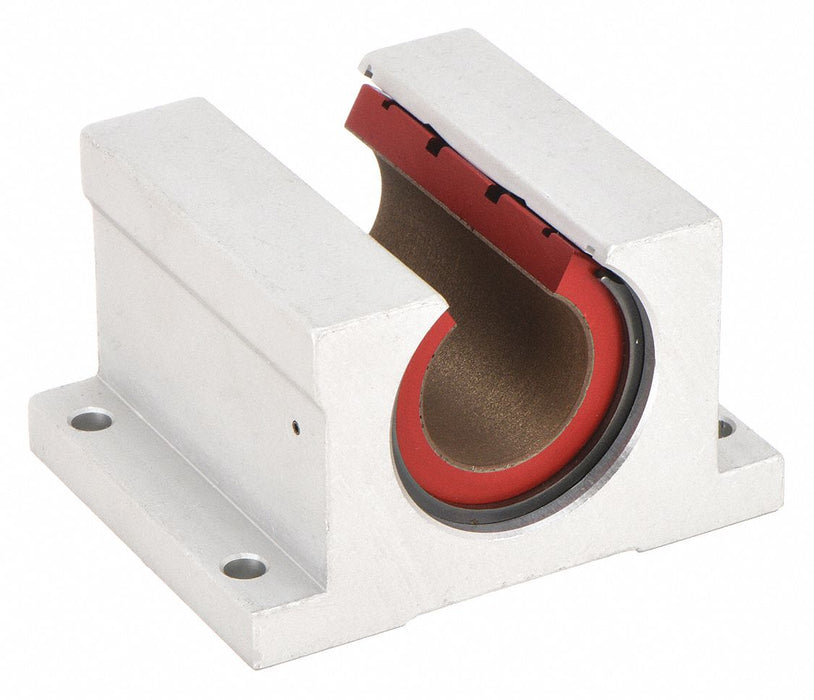

PBC Linear PN24 Mounted Linear Bearing, Single, Open Pillow Block, 1 1/2 in Inside Dia, Frelon Gold

PBC Linear PN24 Mounted Linear Bearing, Single, Open Pillow Block, 1 1/2 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 3 lbs

$462.65 - $462.65
$462.65
$462.65 - $462.65
$462.65

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 1/2 in, Overall Length 3 3/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 14,100 lbf, Dynamic Load Capacity 14,100 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size 1/4 in

Material Aluminum Alloy
Self-Alignment Self-Aligning
Lubrication Self Lubricating
Slot Angle (Degrees) 60 Degrees
Static Load Capacity (N) 14,100 lbf
Static Load Capacity (Lb.) 14,100 lb
Retaining Ring External
Accelerated Speed 14 Feet/Second
Mounting Surface to Shaft Center (In.) 1.75 in
Liner Frelon(TM) Gold
Locking Type Retaining Ring, Roll Pin
Steady State Speed 5 fps
Bearing Type Plain
Dynamic Load Capacity (Lb.) 14,100 lb
Type Open Pillow Block
Temp. Range (F) 0 - 400
Dynamic Load Capacity (N) 14,100 lbf
Housing Style Single
System of Measurement Inch
Minimum Operating Temperature -400 Degrees F
Series PN
Maximum Operating Temperature 400 Degrees F
Mounting Surface to Shaft Center 1.75 in
Static Load Capacity 14,100 lbf
Dynamic Load Capacity 14,100 lbf
Slot Angle 60 Degrees
Pillow Block Type Open
Liner Material Frelon(TM) Gold
Country of Origin United States
