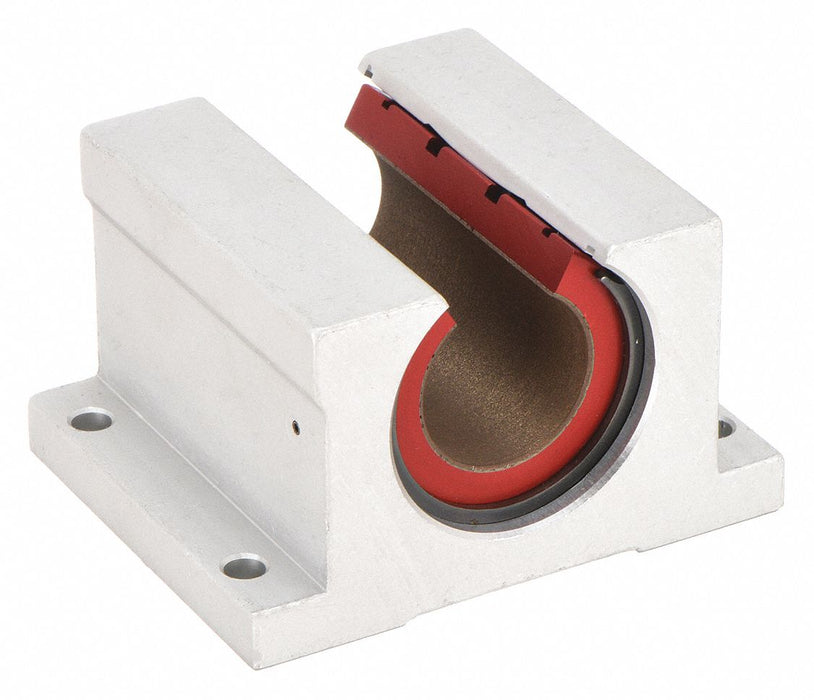

PBC Linear PN20 Mounted Linear Bearing, Single, Open Pillow Block, 1 1/4 in Inside Dia, Frelon Gold

PBC Linear PN20 Mounted Linear Bearing, Single, Open Pillow Block, 1 1/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 2.05 lbs

$379.63 - $379.63
$379.63
$379.63 - $379.63
$379.63

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 1/4 in, Overall Length 3 3/8 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 10,290 lbf, Dynamic Load Capacity 10,290 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size #10

Material Aluminum Alloy
Dynamic Load Capacity (Lb.) 10,290 lb
Temp. Range (F) 0 - 400
Static Load Capacity (N) 10,290 lbf
Dynamic Load Capacity (N) 10,290 lbf
Static Load Capacity (Lb.) 10,290 lb
Liner Frelon(TM) Gold
Accelerated Speed 14 Feet/Second
Slot Angle (Degrees) 60 Degrees
Self-Alignment Self-Aligning
Mounting Surface to Shaft Center (In.) 1.5 in
Bearing Type Plain
Retaining Ring External
Steady State Speed 5 fps
Lubrication Self Lubricating
Locking Type Retaining Ring, Roll Pin
Type Open Pillow Block
System of Measurement Inch
Maximum Operating Temperature 400 Degrees F
Series PN
Minimum Operating Temperature -400 Degrees F
Housing Style Single
Mounting Surface to Shaft Center 1.5 in
Dynamic Load Capacity 10,290 lbf
Static Load Capacity 10,290 lbf
Pillow Block Type Open
Liner Material Frelon(TM) Gold
Slot Angle 60 Degrees
Country of Origin United States
