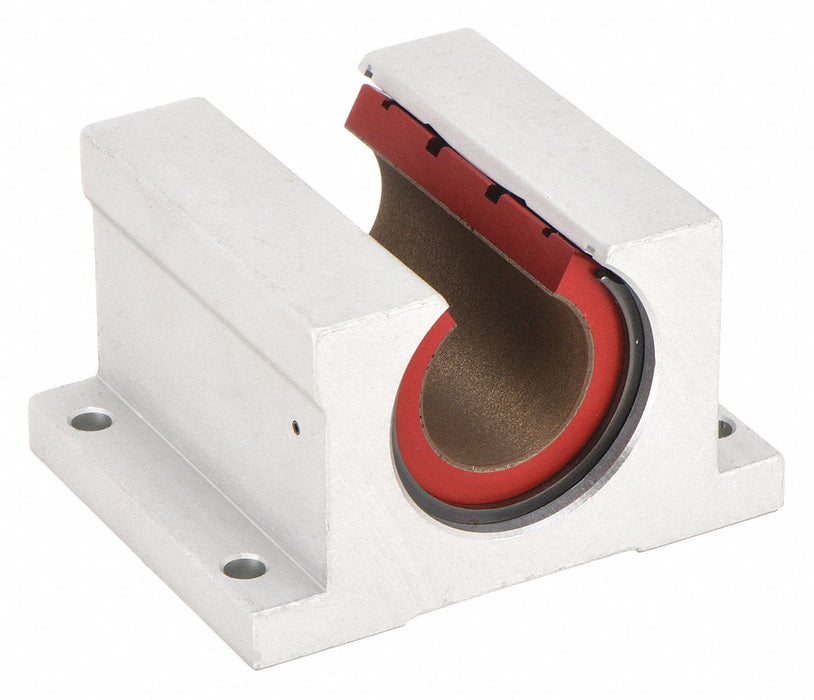

PBC Linear PN16 Mounted Linear Bearing, Single, Open Pillow Block, 1 in Inside Dia, Frelon Gold

PBC Linear PN16 Mounted Linear Bearing, Single, Open Pillow Block, 1 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.95 lbs

$278.70 - $278.70
$278.70
$278.70 - $278.70
$278.70

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 in, Overall Length 2 5/8 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 7,050 lbf, Dynamic Load Capacity 7,050 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size #10, Overall Height 2 in

Material Aluminum Alloy
Lubrication Self Lubricating
Self-Alignment Self-Aligning
Bearing Type Plain
Liner Frelon(TM) Gold
Steady State Speed 5 fps
Static Load Capacity (N) 7,050 lbf
Accelerated Speed 14 Feet/Second
Mounting Surface to Shaft Center (In.) 1.187 in
Retaining Ring External
Slot Angle (Degrees) 60 Degrees
Dynamic Load Capacity (Lb.) 7,050 lb
Locking Type Retaining Ring, Roll Pin
Static Load Capacity (Lb.) 7,050 lb
Temp. Range (F) 0 - 400
Dynamic Load Capacity (N) 7,050 lbf
Type Open Pillow Block
Series PN
Minimum Operating Temperature -400 Degrees F
Maximum Operating Temperature 400 Degrees F
System of Measurement Inch
Housing Style Single
Static Load Capacity 7,050 lbf
Dynamic Load Capacity 7,050 lbf
Mounting Surface to Shaft Center 1.187 in
Slot Angle 60 Degrees
Liner Material Frelon(TM) Gold
Pillow Block Type Open
Country of Origin United States
