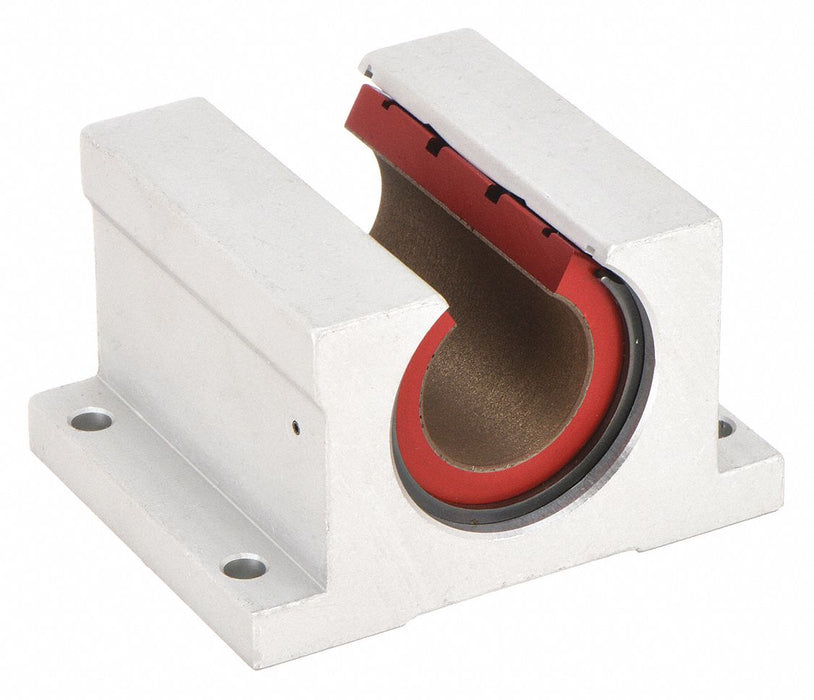

PBC Linear PN12 Mounted Linear Bearing, Single, Open Pillow Block, 3/4 in Inside Dia, Frelon Gold

PBC Linear PN12 Mounted Linear Bearing, Single, Open Pillow Block, 3/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.45 lbs

$163.69 - $163.69
$163.69
$163.69 - $163.69
$163.69

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 3/4 in, Overall Length 1 7/8 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 3,710 lbf, Dynamic Load Capacity 3,710 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size #8

Material Aluminum Alloy
Lubrication Self Lubricating
Mounting Surface to Shaft Center (In.) 0.937 in
Liner Frelon(TM) Gold
Slot Angle (Degrees) 60 Degrees
Bearing Type Plain
Static Load Capacity (Lb.) 3,710 lb
Self-Alignment Self-Aligning
Static Load Capacity (N) 3,710 lbf
Accelerated Speed 14 Feet/Second
Type Open Pillow Block
Dynamic Load Capacity (N) 3,710 lbf
Locking Type Retaining Ring, Roll Pin
Dynamic Load Capacity (Lb.) 3,710 lb
Temp. Range (F) 0 - 400
Steady State Speed 5 fps
Retaining Ring External
Maximum Operating Temperature 400 Degrees F
Series PN
System of Measurement Inch
Housing Style Single
Minimum Operating Temperature -400 Degrees F
Dynamic Load Capacity 3,710 lbf
Includes Seals Seals Not Included
Liner Material Frelon(TM) Gold
Static Load Capacity 3,710 lbf
Mounting Surface to Shaft Center 0.937 in
Slot Angle 60 Degrees
Pillow Block Type Open
Country of Origin United States
