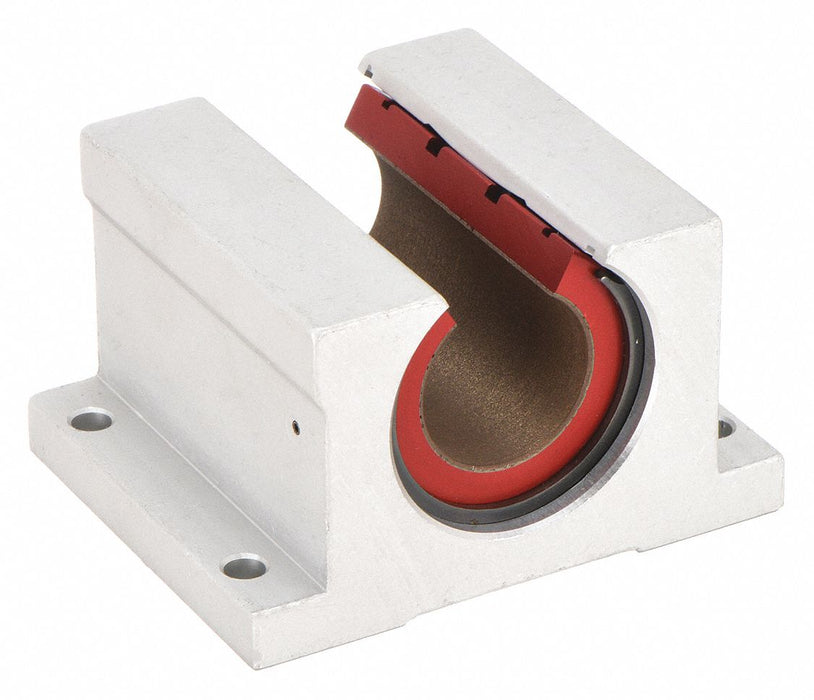

PBC Linear PN08 Mounted Linear Bearing, Single, Open Pillow Block, 1/2 in Inside Dia, Frelon Gold

PBC Linear PN08 Mounted Linear Bearing, Single, Open Pillow Block, 1/2 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.205 lbs

$126.61 - $126.61
$126.61
$126.61 - $126.61
$126.61

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1/2 in, Overall Length 1 1/2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 1,950 lbf, Dynamic Load Capacity 1,950 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size #6

Material Aluminum Alloy
Self-Alignment Self-Aligning
Accelerated Speed 14 Feet/Second
Static Load Capacity (N) 1,950 lbf
Locking Type Retaining Ring, Roll Pin
Dynamic Load Capacity (Lb.) 1,950 lb
Retaining Ring External
Bearing Type Plain
Static Load Capacity (Lb.) 1,950 lb
Mounting Surface to Shaft Center (In.) 0.687 in
Liner Frelon(TM) Gold
Dynamic Load Capacity (N) 1,950 lbf
Lubrication Self Lubricating
Temp. Range (F) 0 - 400
Slot Angle (Degrees) 60 Degrees
Steady State Speed 5 fps
Type Open Pillow Block
Maximum Operating Temperature 400 Degrees F
Series PN
Minimum Operating Temperature -400 Degrees F
Housing Style Single
System of Measurement Inch
Dynamic Load Capacity 1,950 lbf
Mounting Surface to Shaft Center 0.687 in
Static Load Capacity 1,950 lbf
Slot Angle 60 Degrees
Pillow Block Type Open
Liner Material Frelon(TM) Gold
Country of Origin United States
