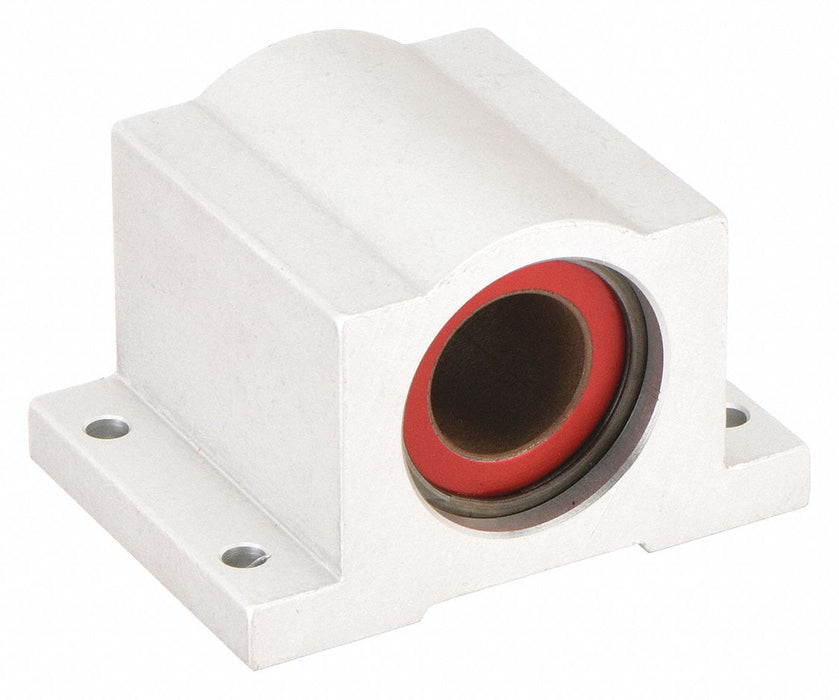

PBC Linear P20 Mounted Linear Bearing, Single, Closed Pillow Block, 1 1/4 in Inside Dia, Frelon Gold

PBC Linear P20 Mounted Linear Bearing, Single, Closed Pillow Block, 1 1/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 2.38 lbs

$300.91 - $300.91
$300.91
$300.91 - $300.91
$300.91

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 1/4 in, Overall Length 3 5/8 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 10,290 lbf, Dynamic Load Capacity 10,290 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #10

Material Aluminum Alloy
Bearing Type Plain
Dynamic Load Capacity (N) 10,290 lbf
Type Closed Pillow Block
Liner Frelon(TM) Gold
Mounting Surface to Shaft Center (In.) 1.5 in
Static Load Capacity (N) 10,290 lbf
Static Load Capacity (Lb.) 10,290 lb
Retaining Ring External
Steady State Speed 5 fps
Temp. Range (F) 0 - 400
Lubrication Self Lubricating
Locking Type Retaining Ring
Dynamic Load Capacity (Lb.) 10,290 lb
Accelerated Speed 14 Feet/Second
Self-Alignment Self-Aligning
Series Simplicity
System of Measurement Inch
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Housing Style Single
Pillow Block Type Closed
Liner Material Frelon(TM) Gold
Country of Origin United States
