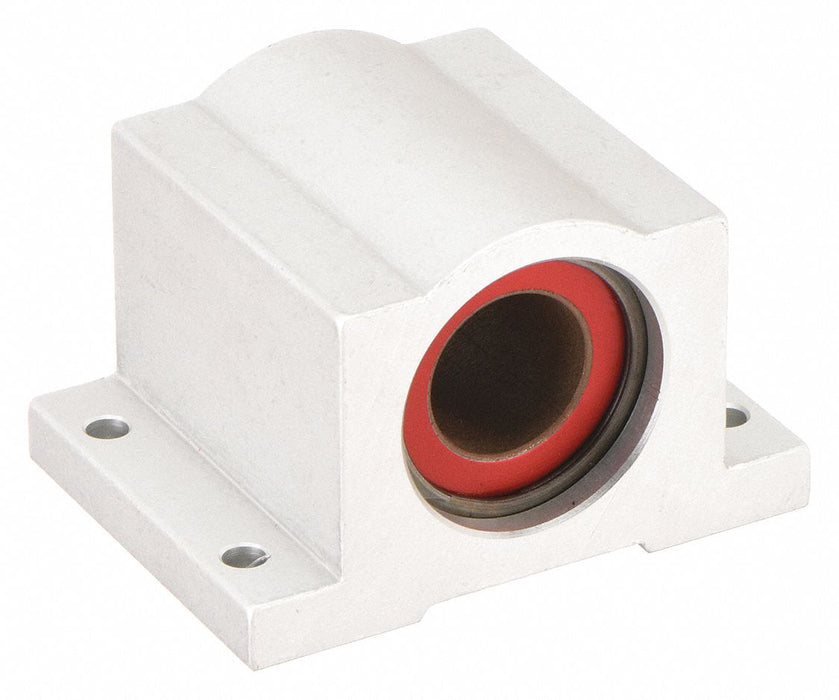

PBC Linear P16 Mounted Linear Bearing, Single, Closed Pillow Block, 1 in Inside Dia, Frelon Gold

PBC Linear P16 Mounted Linear Bearing, Single, Closed Pillow Block, 1 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 1.1 lbs

$203.15 - $203.15
$203.15
$203.15 - $203.15
$203.15

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1 in, Overall Length 2 3/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 7,050 lbf, Dynamic Load Capacity 7,050 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #10

Material Aluminum Alloy
Accelerated Speed 14 Feet/Second
Lubrication Self Lubricating
Type Closed Pillow Block
Retaining Ring External
Mounting Surface to Shaft Center (In.) 1.187 in
Temp. Range (F) 0 - 400
Liner Frelon(TM) Gold
Bearing Type Plain
Static Load Capacity (N) 7,050 lbf
Steady State Speed 5 fps
Dynamic Load Capacity (Lb.) 7,050 lb
Locking Type Retaining Ring
Static Load Capacity (Lb.) 7,050 lb
Self-Alignment Self-Aligning
Dynamic Load Capacity (N) 7,050 lbf
Housing Style Single
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Series Simplicity
System of Measurement Inch
Static Load Capacity 7,050 lbf
Mounting Surface to Shaft Center 1.187 in
Dynamic Load Capacity 7,050 lbf
Pillow Block Type Closed
Liner Material Frelon(TM) Gold
Country of Origin United States
