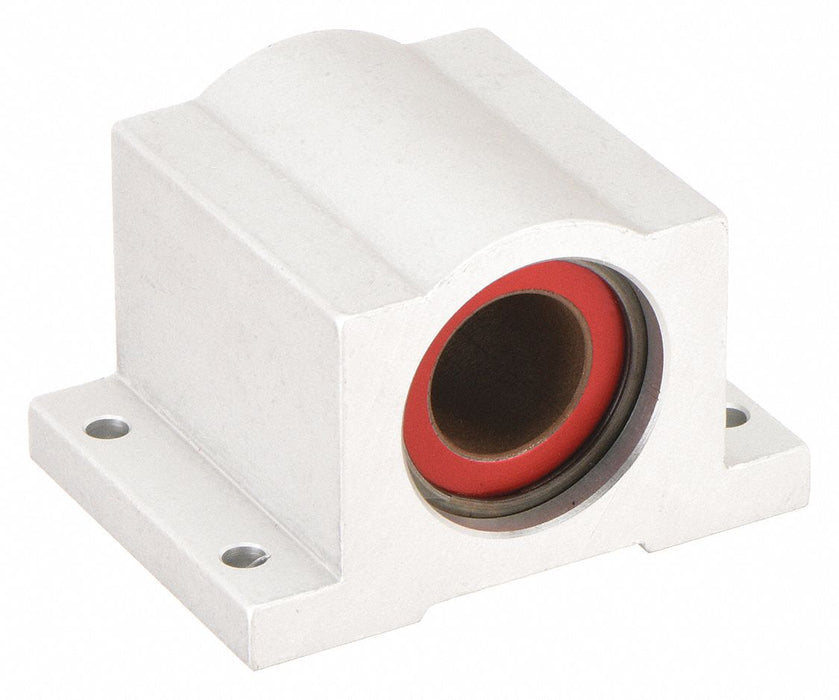

PBC Linear P12 Mounted Linear Bearing, Single, Closed Pillow Block, 3/4 in Inside Dia, Frelon Gold

PBC Linear P12 Mounted Linear Bearing, Single, Closed Pillow Block, 3/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.55 lbs

$151.04 - $151.04
$151.04
$151.04 - $151.04
$151.04

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 3/4 in, Overall Length 2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 3,710 lbf, Dynamic Load Capacity 3,710 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #8, Overall Height 1 3/4 in

Material Aluminum Alloy
Lubrication Self Lubricating
Bearing Type Plain
Steady State Speed 5 fps
Dynamic Load Capacity (N) 3,710 lbf
Locking Type Retaining Ring
Dynamic Load Capacity (Lb.) 3,710 lb
Accelerated Speed 14 Feet/Second
Static Load Capacity (N) 3,710 lbf
Liner Frelon(TM) Gold
Static Load Capacity (Lb.) 3,710 lb
Retaining Ring External
Mounting Surface to Shaft Center (In.) 0.937 in
Type Closed Pillow Block
Temp. Range (F) 0 - 400
Self-Alignment Self-Aligning
Maximum Operating Temperature 400 Degrees F
Housing Style Single
Minimum Operating Temperature -400 Degrees F
System of Measurement Inch
Series Simplicity
Mounting Surface to Shaft Center 0.937 in
Static Load Capacity 3,710 lbf
Dynamic Load Capacity 3,710 lbf
Pillow Block Type Closed
Liner Material Frelon(TM) Gold
Country of Origin United States
