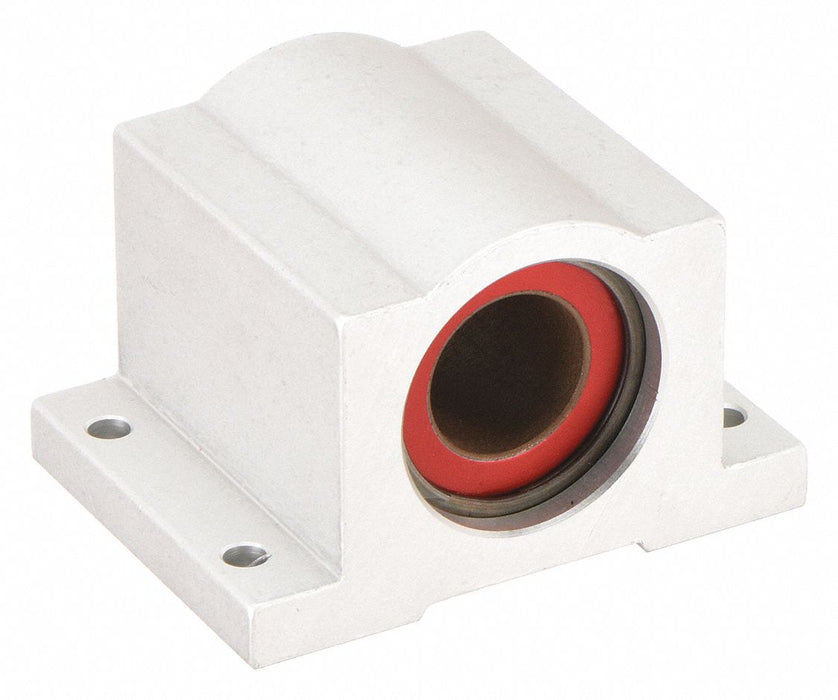

PBC Linear P10 Mounted Linear Bearing, Single, Closed Pillow Block, 5/8 in Inside Dia, Frelon Gold

PBC Linear P10 Mounted Linear Bearing, Single, Closed Pillow Block, 5/8 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.45 lbs

$143.87 - $143.87
$143.87
$143.87 - $143.87
$143.87

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 5/8 in, Overall Length 2 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 2,940 lbf, Dynamic Load Capacity 2,940 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #8, Overall Height 1 5/8 in

Material Aluminum Alloy
Static Load Capacity (Lb.) 2,940 lb
Lubrication Self Lubricating
Accelerated Speed 14 Feet/Second
Type Closed Pillow Block
Dynamic Load Capacity (N) 2,940 lbf
Self-Alignment Self-Aligning
Liner Frelon(TM) Gold
Temp. Range (F) 0 - 400
Retaining Ring External
Steady State Speed 5 fps
Dynamic Load Capacity (Lb.) 2,940 lb
Static Load Capacity (N) 2,940 lbf
Mounting Surface to Shaft Center (In.) 0.875 in
Bearing Type Plain
Locking Type Retaining Ring
Housing Style Single
Minimum Operating Temperature -400 Degrees F
System of Measurement Inch
Series Simplicity
Maximum Operating Temperature 400 Degrees F
Pillow Block Type Closed
Dynamic Load Capacity 2,940 lbf
Liner Material Frelon(TM) Gold
Static Load Capacity 2,940 lbf
Mounting Surface to Shaft Center 0.875 in
Country of Origin United States
