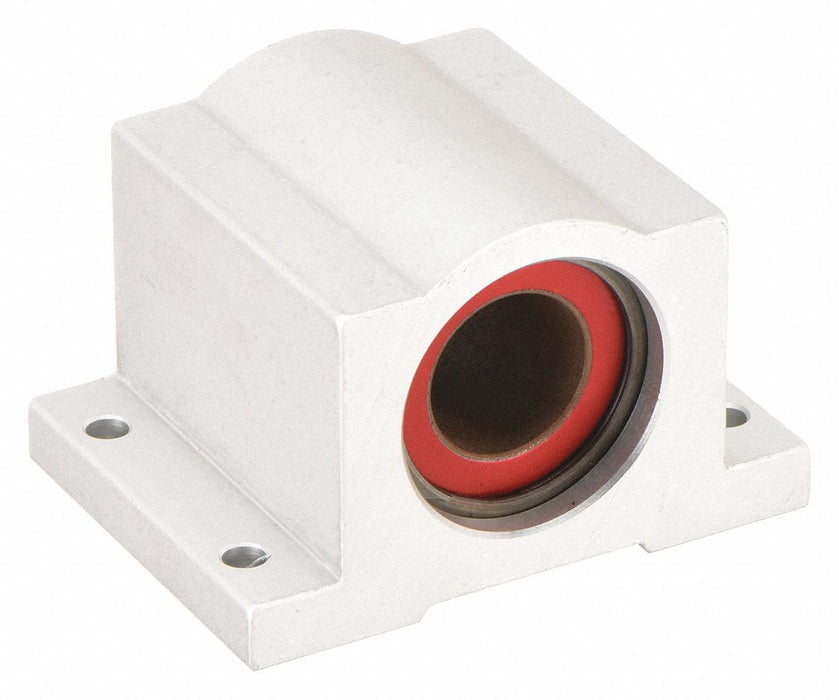

PBC Linear P04 Mounted Linear Bearing, Single, Closed Pillow Block, 1/4 in Inside Dia, Frelon Gold

PBC Linear P04 Mounted Linear Bearing, Single, Closed Pillow Block, 1/4 in Inside Dia, Frelon Gold

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.15 lbs

$108.02 - $108.02
$108.02
$108.02 - $108.02
$108.02

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1/4 in, Overall Length 1 1/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 600 lbf, Dynamic Load Capacity 600 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #6, Overall Height 7/8 in

Material Aluminum Alloy
Accelerated Speed 14 Feet/Second
Temp. Range (F) 0 - 400
Static Load Capacity (Lb.) 600 lb
Retaining Ring External
Type Closed Pillow Block
Mounting Surface to Shaft Center (In.) 0.437 in
Locking Type Retaining Ring
Liner Frelon(TM) Gold
Dynamic Load Capacity (Lb.) 600 lb
Static Load Capacity (N) 600 lbf
Lubrication Self Lubricating
Self-Alignment Self-Aligning
Dynamic Load Capacity (N) 600 lbf
Bearing Type Plain
Steady State Speed 5 fps
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Housing Style Single
System of Measurement Inch
Series Simplicity
Pillow Block Type Closed
Liner Material Frelon(TM) Gold
Country of Origin United States
