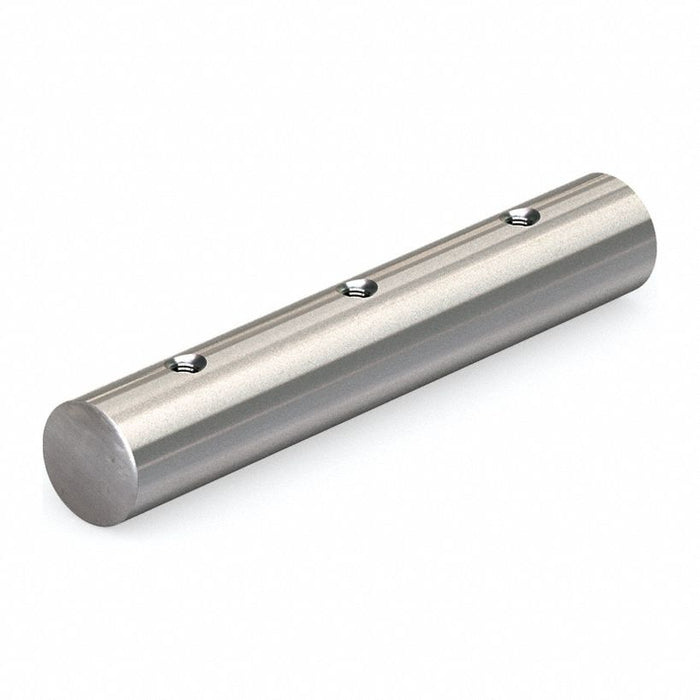

PBC Linear NIPDM40-0300-SL Pre-Drilled Linear Shaft

PBC Linear NIPDM40-0300-SL Pre-Drilled Linear Shaft, Polished Carbon Steel, 40 mm Dia, 300 mm Lg

UPC: | Harmonization / Schedule B : 7227.90.6030

Country of Origin: United States | Shipping Weight: 6.48 lbs

$214.88 - $214.88
$214.88
$214.88 - $214.88
$214.88

Linear Shaft, System of Measurement Metric, Diameter 40 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 300 mm, Surface Hardness - Minimum 60 HRC, Material Steel, Finish Polished, Mounting Hole Thread Size M10 x 1.5, Diameter Tolerance - Minimum -0.013 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 200 mm, Mounting Hole Center to Shaft End 100 mm

Material Steel
Finish Polished
Mounting Hole Center to Center 200 mm
For Use With Linear Ball Bearings, Lined Bearings
Surface Roughness 8-12 RMS
Shaft Drilling Pre-Drilled
Shaft Material Grade 1060
Product Type Linear Shaft
Shaft Material Finish Polished
Shaft End to Hole 100 mm
Shaft Hardness RC 60
System of Measurement Metric
Shaft Hole Spacing 200 mm
Standards ISO
Shaft Material Carbon Steel
Weight Per Meter 9.8 kg
End Type Plain Ends
Mounting Hole Type Tapped
Mounting Hole Center to Shaft End 100 mm
Shaft Type Pre-Drilled Shaft
Surface Hardness - Minimum 60 HRC
Series NIPDM
Core Type Solid
Roughness 8-12 uin RMS
Country of Origin United States
