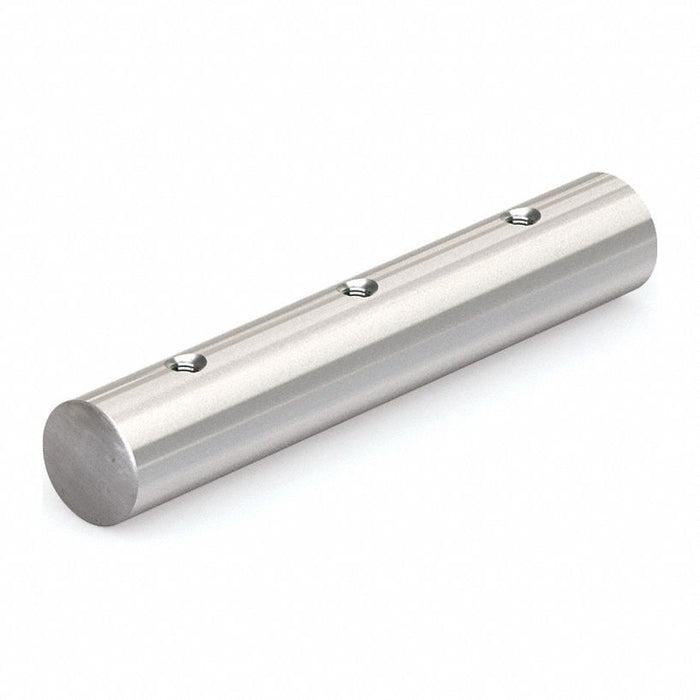

PBC Linear NIPDM30SS-1000-SL Pre-Drilled Linear Shaft

PBC Linear NIPDM30SS-1000-SL Pre-Drilled Linear Shaft, Polished Stainless Steel, 30 mm Dia, 1000 mm Lg

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 12.13 lbs

$1,021.40 - $1,021.40
$1,021.40
$1,021.40 - $1,021.40
$1,021.40

Linear Shaft, System of Measurement Metric, Diameter 30 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 1,000 mm, Surface Hardness - Minimum 60 HRC, Material Stainless Steel, Finish Polished, Mounting Hole Thread Size M10 x 1.5, Diameter Tolerance - Minimum -0.013 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 200 mm, Mounting Hole Center to Shaft End 100 mm

Material Stainless Steel
For Use With Linear Ball Bearings, Lined Bearings
Finish Polished
Mounting Hole Center to Center 200 mm
System of Measurement Metric
Shaft Hole Spacing 200 mm
Shaft End to Hole 100 mm
Standards ISO
Shaft Drilling Pre-Drilled
Shaft Material Finish Polished
Product Type Linear Shaft
Surface Roughness 8-12 RMS
Shaft Material Stainless Steel
Shaft Material Grade 440
Core Type Solid
Mounting Hole Center to Shaft End 100 mm
Mounting Hole Type Tapped
End Type Plain Ends
Series NIPDM
Surface Hardness - Minimum 60 HRC
Roughness 8-12 uin RMS
Number of Mounting Holes 5
Weight Per Meter 5.5 kg
Shaft Type Pre-Drilled Shaft
Country of Origin United States
