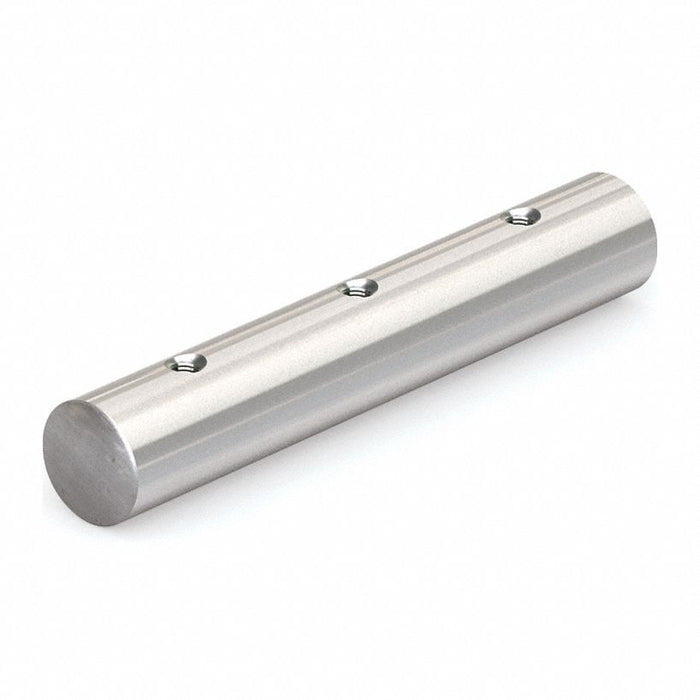

PBC Linear NIPDM20SS-0300-SL Pre-Drilled Linear Shaft

PBC Linear NIPDM20SS-0300-SL Pre-Drilled Linear Shaft, Polished Stainless Steel, 20 mm Dia, 300 mm Lg

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 1.62 lbs

$183.20 - $183.20
$183.20
$183.20 - $183.20
$183.20

Linear Shaft, System of Measurement Metric, Diameter 20 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 300 mm, Surface Hardness - Minimum 60 HRC, Material Stainless Steel, Finish Polished, Mounting Hole Thread Size M6 x 1, Diameter Tolerance - Minimum -0.013 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 150 mm, Mounting Hole Center to Shaft End 75 mm

Material Stainless Steel
For Use With Linear Ball Bearings, Lined Bearings
Finish Polished
Mounting Hole Center to Center 150 mm
Shaft End to Hole 75 mm
Shaft Hole Spacing 150 mm
Shaft Material Stainless Steel
Surface Roughness 8-12 RMS
Standards ISO
Shaft Drilling Pre-Drilled
Product Type Linear Shaft
System of Measurement Metric
Shaft Material Grade 440
Shaft Material Finish Polished
Mounting Hole Center to Shaft End 75 mm
Core Type Solid
Mounting Hole Type Tapped
Number of Mounting Holes 2
End Type Plain Ends
Series NIPDM
Roughness 8-12 uin RMS
Shaft Type Pre-Drilled Shaft
Surface Hardness - Minimum 60 HRC
Weight Per Meter 2.45 kg
Country of Origin United States
