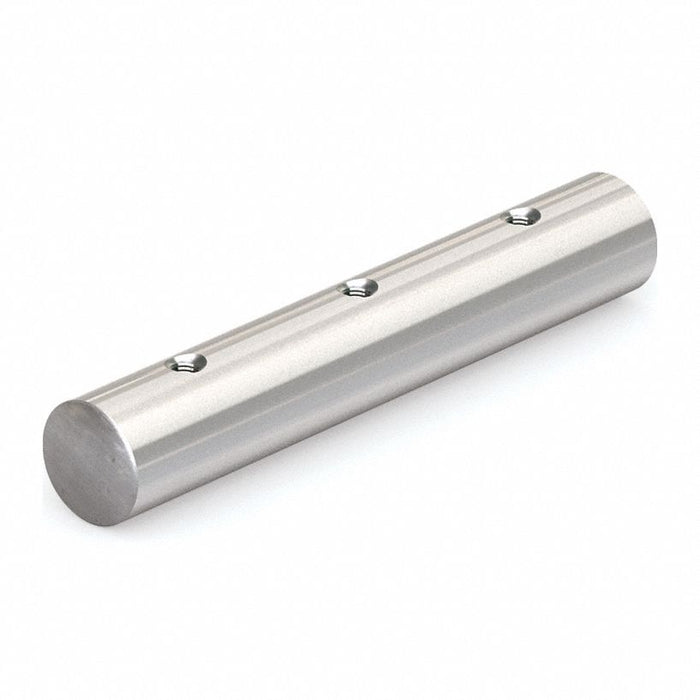

PBC Linear NIPDM20SS-0150-SL Pre-Drilled Linear Shaft

PBC Linear NIPDM20SS-0150-SL Pre-Drilled Linear Shaft, Polished Stainless Steel, 20 mm Dia, 150 mm Lg

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 0.81 lbs

$91.62 - $91.62
$91.62
$91.62 - $91.62
$91.62

Linear Shaft, System of Measurement Metric, Diameter 20 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 150 mm, Surface Hardness - Minimum 60 HRC, Material Stainless Steel, Finish Polished, Mounting Hole Thread Size M6 x 1, Diameter Tolerance - Minimum -0.013 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 150 mm, Mounting Hole Center to Shaft End 75 mm

Material Stainless Steel
Mounting Hole Center to Center 150 mm
Finish Polished
For Use With Linear Ball Bearings, Lined Bearings
Shaft Drilling Pre-Drilled
System of Measurement Metric
Product Type Linear Shaft
Standards ISO
Shaft Material Finish Polished
Shaft End to Hole 75 mm
Shaft Material Grade 440
Shaft Hole Spacing 150 mm
Shaft Hardness RC 60
Surface Roughness 8-12 RMS
Shaft Material Stainless Steel
Number of Mounting Holes 1
Surface Hardness - Minimum 60 HRC
Mounting Hole Type Tapped
Series NIPDM
End Type Plain Ends
Core Type Solid
Shaft Type Pre-Drilled Shaft
Roughness 8-12 uin RMS
Mounting Hole Center to Shaft End 75 mm
Weight Per Meter 2.45 kg
Country of Origin United States
