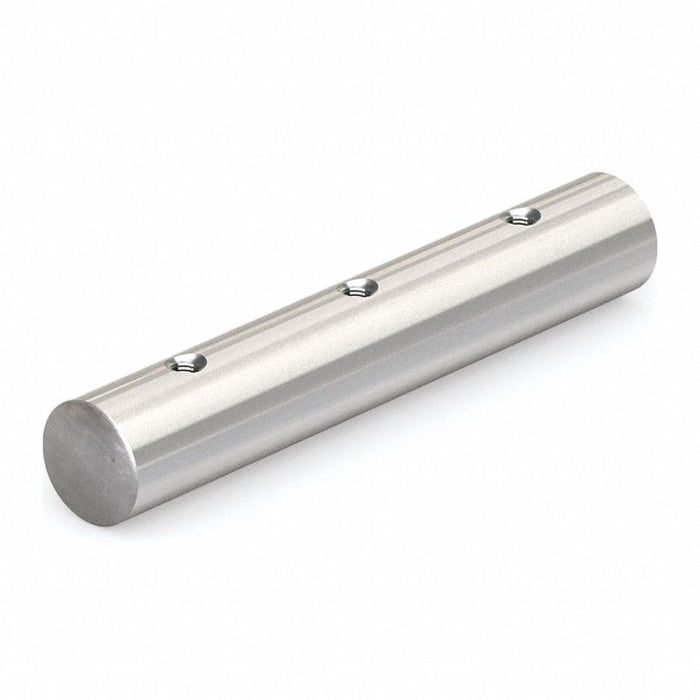

PBC Linear NIPDM16SS-0600-SL Pre-Drilled Linear Shaft

PBC Linear NIPDM16SS-0600-SL Pre-Drilled Linear Shaft, Polished Stainless Steel, 16 mm Dia, 600 mm Lg

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 2.08 lbs

$365.01 - $365.01
$365.01
$365.01 - $365.01
$365.01

Linear Shaft, System of Measurement Metric, Diameter 16 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 600 mm, Surface Hardness - Minimum 60 HRC, Material Stainless Steel, Finish Polished, Mounting Hole Thread Size M5 x 0.8, Diameter Tolerance - Minimum -0.011 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 150 mm, Mounting Hole Center to Shaft End 75 mm

Material Stainless Steel
For Use With Linear Ball Bearings, Lined Bearings
Mounting Hole Center to Center 150 mm
Finish Polished
Shaft Material Stainless Steel
Surface Roughness 8-12 RMS
Shaft Drilling Pre-Drilled
Product Type Linear Shaft
System of Measurement Metric
Standards ISO
Shaft Material Finish Polished
Shaft Material Grade 440
Shaft End to Hole 75 mm
Shaft Hardness RC 60
Shaft Hole Spacing 150 mm
Weight Per Meter 1.57 kg
Core Type Solid
Surface Hardness - Minimum 60 HRC
Series NIPDM
Mounting Hole Center to Shaft End 75 mm
Roughness 8-12 uin RMS
Mounting Hole Type Tapped
Number of Mounting Holes 4
End Type Plain Ends
Shaft Type Pre-Drilled Shaft
Country of Origin United States
