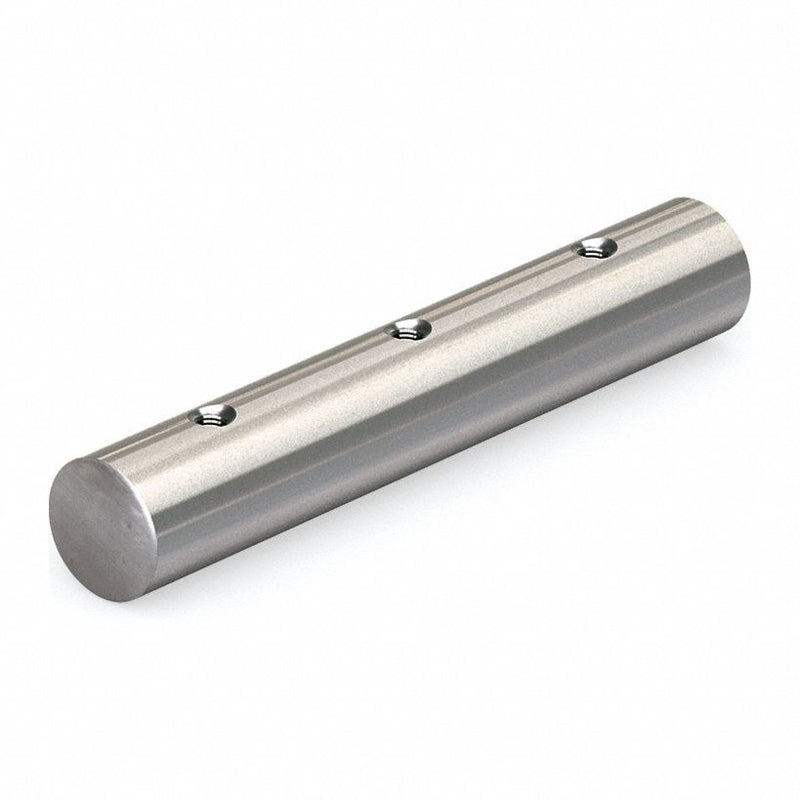

PBC Linear NIPDM12-0300-SL Pre-Drilled Linear Shaft

PBC Linear NIPDM12-0300-SL Pre-Drilled Linear Shaft, Polished Carbon Steel, 12 mm Dia, 300 mm Lg

UPC: | Harmonization / Schedule B : 7227.90.6030

Country of Origin: United States | Shipping Weight: 0.59 lbs

$139.48 - $139.48
$139.48
$139.48 - $139.48
$139.48

Linear Shaft, System of Measurement Metric, Diameter 12 mm, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 300 mm, Surface Hardness - Minimum 60 HRC, Material Steel, Finish Polished, Mounting Hole Thread Size M4 x 0.7, Diameter Tolerance - Minimum -0.011 mm, Diameter Tolerance - Maximum 0 mm, Mounting Hole Center to Center 120 mm, Mounting Hole Center to Shaft End 60 mm

Material Steel
Mounting Hole Center to Center 120 mm
Finish Polished
For Use With Linear Ball Bearings, Lined Bearings
Surface Roughness 8-12 RMS
Shaft Material Carbon Steel
Shaft Drilling Pre-Drilled
Shaft Hole Spacing 120 mm
Shaft Material Finish Polished
Standards ISO
Product Type Linear Shaft
Shaft Material Grade 1060
System of Measurement Metric
Shaft End to Hole 60 mm
Series NIPDM
Mounting Hole Center to Shaft End 60 mm
Mounting Hole Type Tapped
Surface Hardness - Minimum 60 HRC
Weight Per Meter 0.89 kg
End Type Plain Ends
Shaft Type Pre-Drilled Shaft
Roughness 8-12 uin RMS
Core Type Solid
Country of Origin United States
