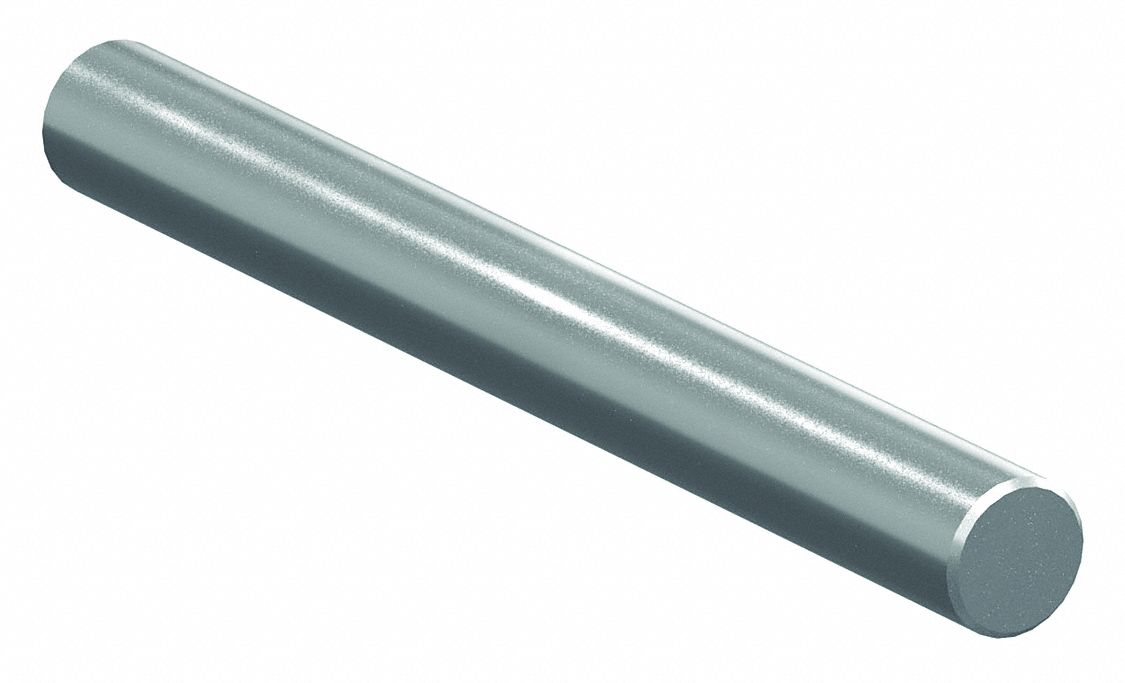

PBC Linear NIL16SS-012.000 Linear Shaft, Solid, 1 in Dia, 12 in Lg, Stainless Steel, Polished

PBC Linear NIL16SS-012.000 Linear Shaft, Solid, 1 in Dia, 12 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 2.66 lbs

$124.14 - $124.14
$124.14
$124.14 - $124.14
$124.14

Linear Shaft, System of Measurement Inch, Diameter 1 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 12 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Temp. Range (F) 0 Degrees - 400 Degrees F
For Use With Linear Ball Bearings, Lined Bearings
Min. Surface Hardness 50 RC
Finish Polished
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Shaft Type Solid Shaft
Surface Hardness - Minimum 50 HRC
Core Type Solid
Weight Per Inch 0.222 lb
Tolerance Class L
Operating Temperature - Maximum 400 Degrees F
Roughness 8-12 uin RMS
Operating Temperature - Minimum 0 Degrees F
End Type Plain Ends
Series NILSS
Country of Origin United States
