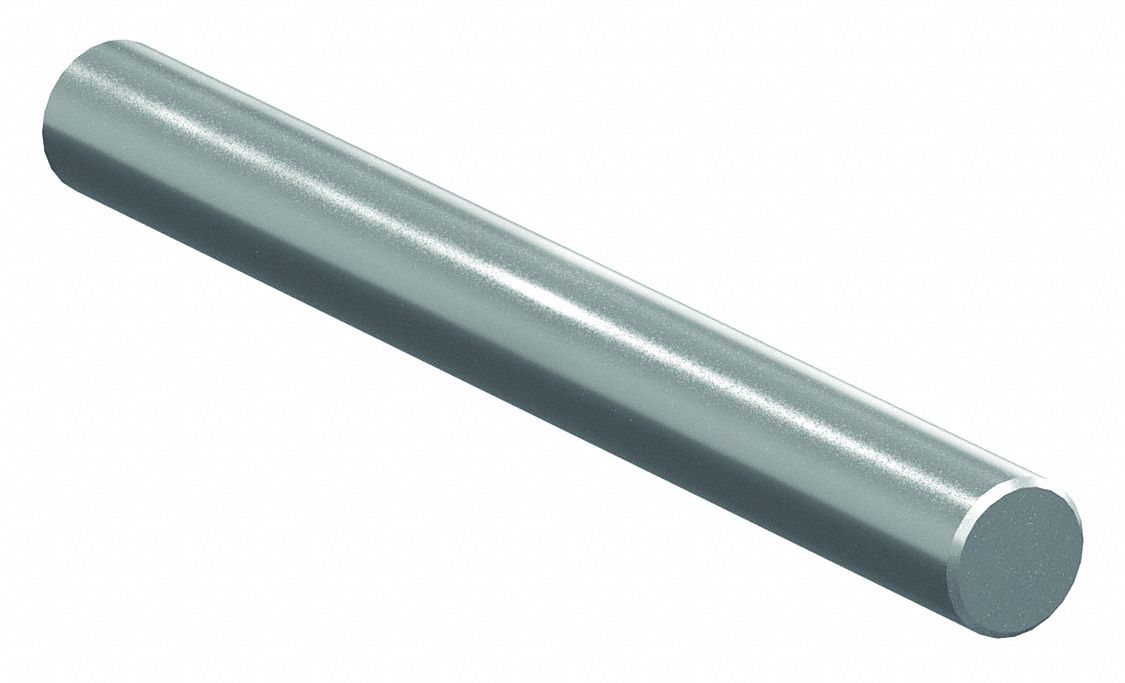

PBC Linear NIL12SS-024.000 Linear Shaft, Solid, 3/4 in Dia, 24 in Lg, Stainless Steel, Polished

PBC Linear NIL12SS-024.000 Linear Shaft, Solid, 3/4 in Dia, 24 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 3 lbs

$182.85 - $182.85
$182.85
$182.85 - $182.85
$182.85

Linear Shaft, System of Measurement Inch, Diameter 3/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 24 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Temp. Range (F) 0 Degrees - 400 Degrees F
For Use With Linear Ball Bearings, Lined Bearings
Min. Surface Hardness 50 RC
Finish Polished
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Roughness 8-12 uin RMS
Weight Per Inch 0.125 lb
Series NILSS
Tolerance Class L
End Type Plain Ends
Operating Temperature - Minimum 0 Degrees F
Shaft Type Solid Shaft
Operating Temperature - Maximum 400 Degrees F
Core Type Solid
Surface Hardness - Minimum 50 HRC
Country of Origin United States
