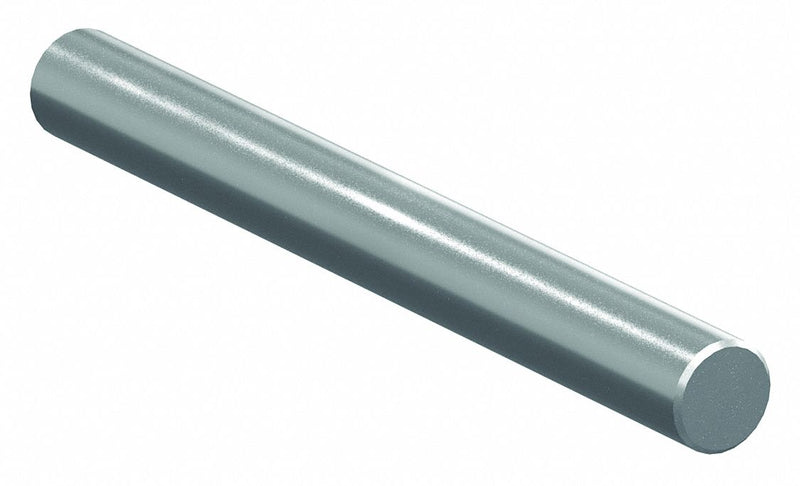

PBC Linear NIL12SS-018.000 Linear Shaft, Solid, 3/4 in Dia, 18 in Lg, Stainless Steel, Polished

PBC Linear NIL12SS-018.000 Linear Shaft, Solid, 3/4 in Dia, 18 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 2.25 lbs

$140.00 - $140.00
$140.00
$140.00 - $140.00
$140.00

Linear Shaft, System of Measurement Inch, Diameter 3/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 18 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Temp. Range (F) 0 Degrees - 400 Degrees F
Finish Polished
Min. Surface Hardness 50 RC
For Use With Linear Ball Bearings, Lined Bearings
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Roughness 8-12 uin RMS
End Type Plain Ends
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 400 Degrees F
Series NILSS
Weight Per Inch 0.125 lb
Core Type Solid
Shaft Type Solid Shaft
Surface Hardness - Minimum 50 HRC
Tolerance Class L
Country of Origin United States
