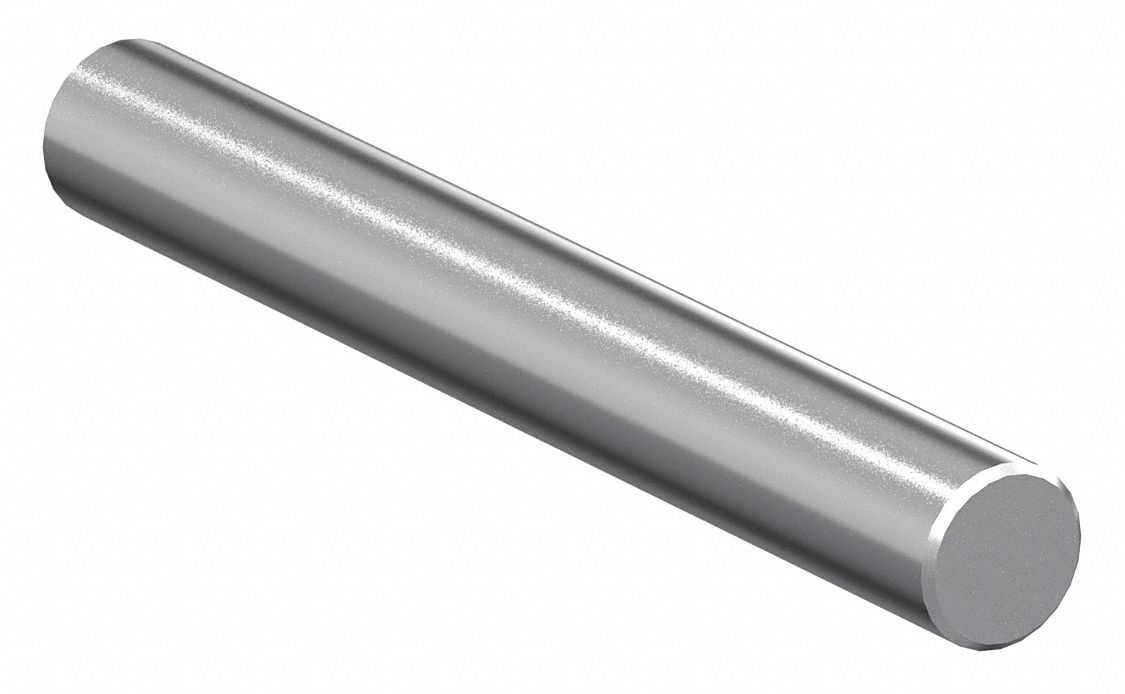

PBC Linear NIL12-006.000 Linear Shaft, Solid, 3/4 in Dia, 6 in Lg, Carbon Steel, Polished

PBC Linear NIL12-006.000 Linear Shaft, Solid, 3/4 in Dia, 6 in Lg, Carbon Steel, Polished

UPC: | Harmonization / Schedule B : 7227.90.6030

Country of Origin: United States | Shipping Weight: 0.75 lbs

$16.82 - $16.82
$16.82
$16.82 - $16.82
$16.82

Linear Shaft, System of Measurement Inch, Diameter 3/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 6 in, Surface Hardness - Minimum 60 HRC, Material Carbon Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Carbon Steel
Finish Polished
Temp. Range (F) 0 Degrees - 400 Degrees F
Min. Surface Hardness 60 RC
For Use With Linear Ball Bearings, Lined Bearings
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Operating Temperature - Minimum 0 Degrees F
Core Type Solid
Tolerance Class L
Series NIL
Surface Hardness - Minimum 60 HRC
Operating Temperature - Maximum 400 Degrees F
Roughness 8-12 uin RMS
End Type Plain Ends
Weight Per Inch 0.125 lb
Shaft Type Solid Shaft
Country of Origin United States
