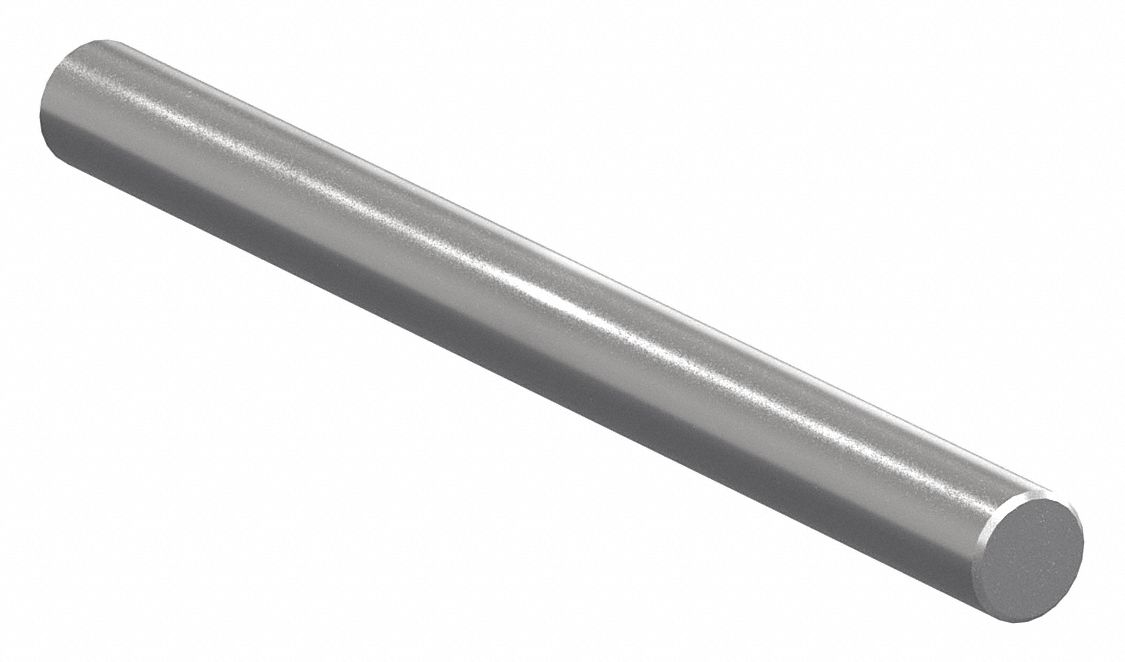

PBC Linear NIL08SS-006.000 Linear Shaft, Solid, 1/2 in Dia, 6 in Lg, Stainless Steel, Polished

PBC Linear NIL08SS-006.000 Linear Shaft, Solid, 1/2 in Dia, 6 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 0.33 lbs

$46.15 - $46.15
$46.15
$46.15 - $46.15
$46.15

Linear Shaft, System of Measurement Inch, Diameter 1/2 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 6 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Min. Surface Hardness 50 RC
Finish Polished
Temp. Range (F) 0 Degrees - 400 Degrees F
For Use With Linear Ball Bearings, Lined Bearings
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
End Type Plain Ends
Roughness 8-12 uin RMS
Operating Temperature - Minimum 0 Degrees F
Shaft Type Solid Shaft
Core Type Solid
Operating Temperature - Maximum 400 Degrees F
Weight Per Inch 0.055 lb
Surface Hardness - Minimum 50 HRC
Tolerance Class L
Series NILSS
Country of Origin United States
