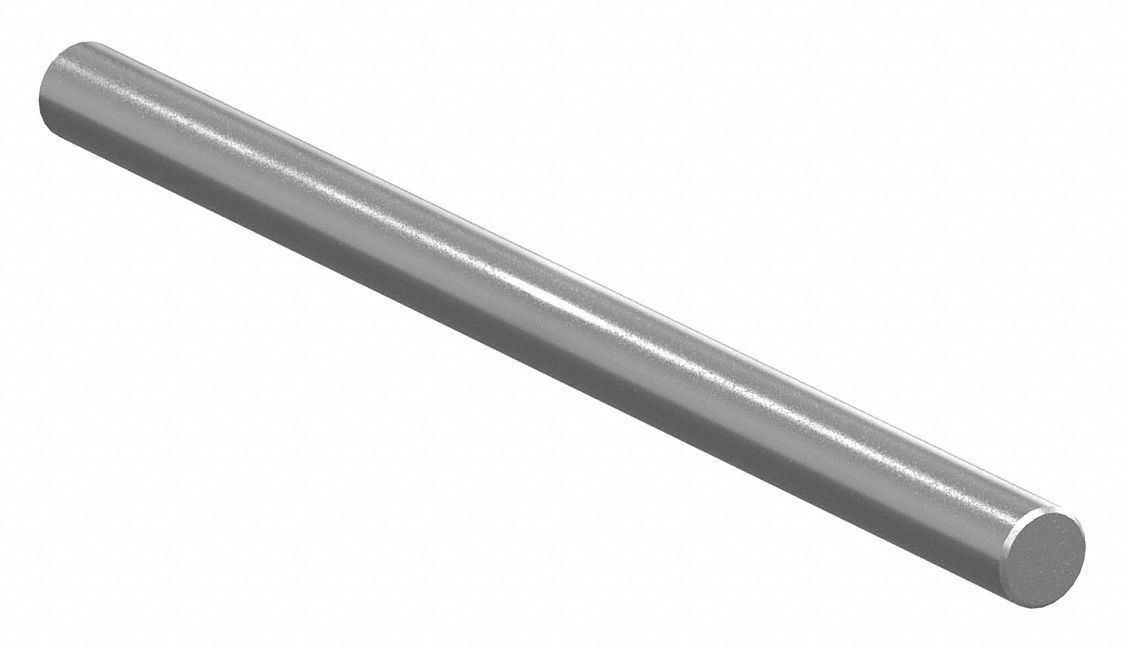

PBC Linear NIL06SS-006.000 Linear Shaft, Solid, 3/8 in Dia, 6 in Lg, Stainless Steel, Polished

PBC Linear NIL06SS-006.000 Linear Shaft, Solid, 3/8 in Dia, 6 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 0.19 lbs

$27.52 - $27.52
$27.52
$27.52 - $27.52
$27.52

Linear Shaft, System of Measurement Inch, Diameter 3/8 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 6 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Temp. Range (F) 0 Degrees - 400 Degrees F
For Use With Linear Ball Bearings, Lined Bearings
Finish Polished
Min. Surface Hardness 50 RC
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Operating Temperature - Maximum 400 Degrees F
Surface Hardness - Minimum 50 HRC
End Type Plain Ends
Weight Per Inch 0.031 lb
Core Type Solid
Shaft Type Solid Shaft
Roughness 8-12 uin RMS
Series NILSS
Operating Temperature - Minimum 0 Degrees F
Tolerance Class L
Country of Origin United States
