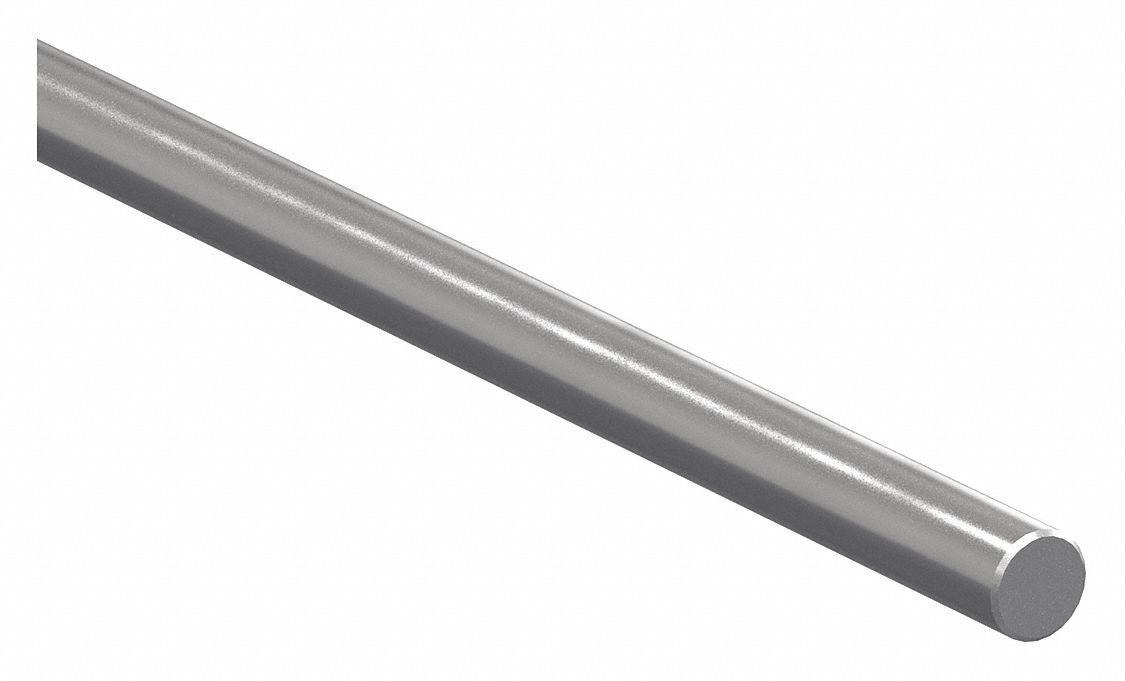

PBC Linear NIL04SS-048.000 Linear Shaft, Solid, 1/4 in Dia, 48 in Lg, Stainless Steel, Polished

PBC Linear NIL04SS-048.000 Linear Shaft, Solid, 1/4 in Dia, 48 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 0.67 lbs

$225.86 - $225.86
$225.86
$225.86 - $225.86
$225.86

Linear Shaft, System of Measurement Inch, Diameter 1/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 48 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Temp. Range (F) 0 Degrees - 400 Degrees F
For Use With Linear Ball Bearings, Lined Bearings
Min. Surface Hardness 50 RC
Finish Polished
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Surface Hardness - Minimum 50 HRC
Tolerance Class L
Core Type Solid
Operating Temperature - Minimum 0 Degrees F
End Type Plain Ends
Operating Temperature - Maximum 400 Degrees F
Weight Per Inch 0.014 lb
Roughness 8-12 uin RMS
Shaft Type Solid Shaft
Series NILSS
Country of Origin United States
