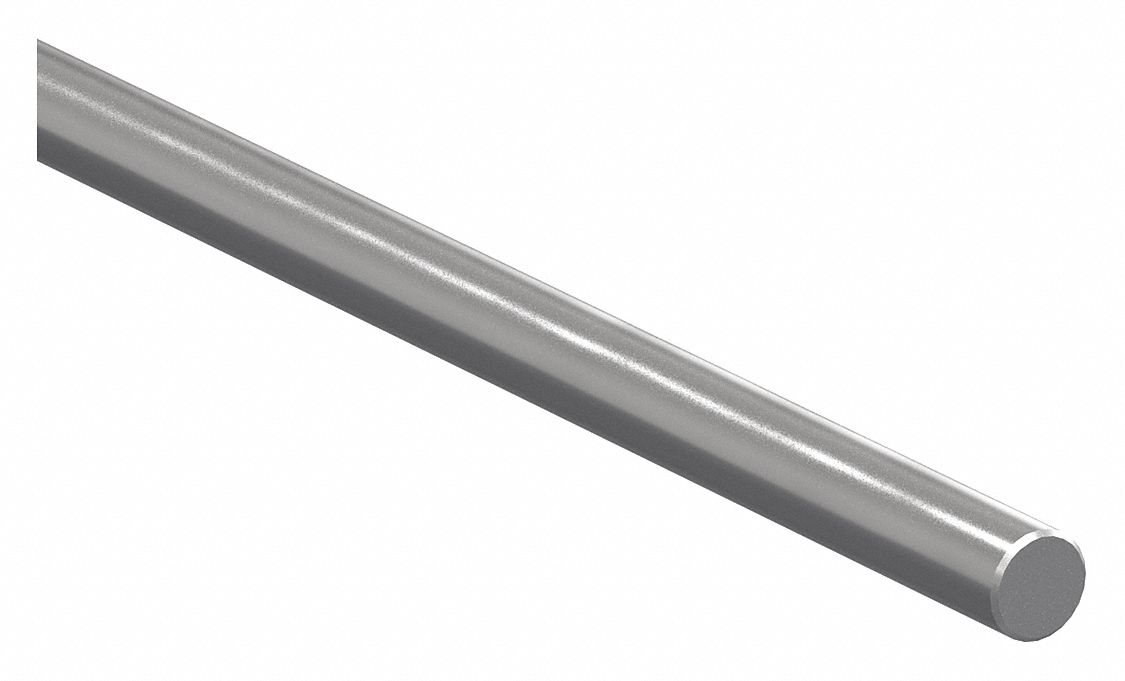

PBC Linear NIL04SS-012.000 linear shaft

PBC Linear NIL04SS-012.000 Linear Shaft, Solid, 1/4 in Dia, 12 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 0.17 lbs

$45.98 - $45.98
$45.98
$45.98 - $45.98
$45.98

Linear Shaft, System of Measurement Inch, Diameter 1/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 12 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Finish Polished
Temp. Range (F) 0 Degrees - 400 Degrees F
Min. Surface Hardness 50 RC
For Use With Linear Ball Bearings, Lined Bearings
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Roughness 8-12 uin RMS
End Type Plain Ends
Surface Hardness - Minimum 50 HRC
Core Type Solid
Shaft Type Solid Shaft
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 400 Degrees F
Tolerance Class L
Weight Per Inch 0.014 lb
Series NILSS
Country of Origin United States
