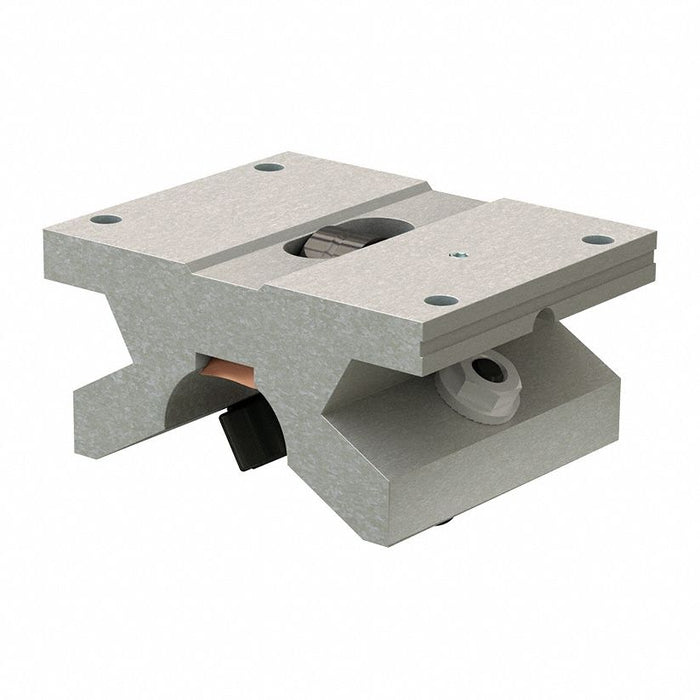

PBC Linear MSPB-30-OPN-S Single Roller Pillow Block with Scrapers, For 30 mm Round Shaft, 6,227.51 N Dynamic Load Rating

PBC Linear MSPB-30-OPN-S Single Roller Pillow Block with Scrapers, For 30 mm Round Shaft, 6,227.51 N Dynamic Load Rating

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 2.2 lbs

$585.44 - $585.44
$585.44
$585.44 - $585.44
$585.44

Single Roller Pillow Block, Includes Scrapers Scrapers Included, System of Measurement Metric, For Shaft Diameter 30 mm, Overall Length 85.73 mm, Overall Width 101.6 mm, Overall Height 2.5625 in, Center Height 1.465 in, Dynamic Load Rating 6,227.51 N, Carriage Type Single, Mount Hole Center to Center Width 3.5 in, Mount Hole Center to Center Length 2 in, For Shaft Type Round, Mounting Hole Diameter 0.21875 in, Shaft Center to Mount Hole Width 1.75 in, Bearing Material Aluminum Alloy

Bore Diameter 30 mm
Center Height 1.465 in
Mount Hole Center-to-Center Length 2 in
Mount Hole Size 0.21875 in
Overall Length 85.73 mm
Overall Width 101.6 mm
Overall Height 2.5625 in
Shaft Center to Mount Hole Width 1.75 in
Mounting Bolt Size #10
Mount Hole Center-to-Center Width 3.5 in
System of Measurement Metric
Housing Material Aluminum Alloy
Bearing Material Aluminum Alloy
Standards ISO
Resistance Properties Corrosion Resistance
For Shaft Type Round
Carriage Type Single
Includes Scrapers Scrapers Included
Dynamic Load Rating 6,227.51 N
Lubricant Material Grease Lubrication
Country of Origin United States
