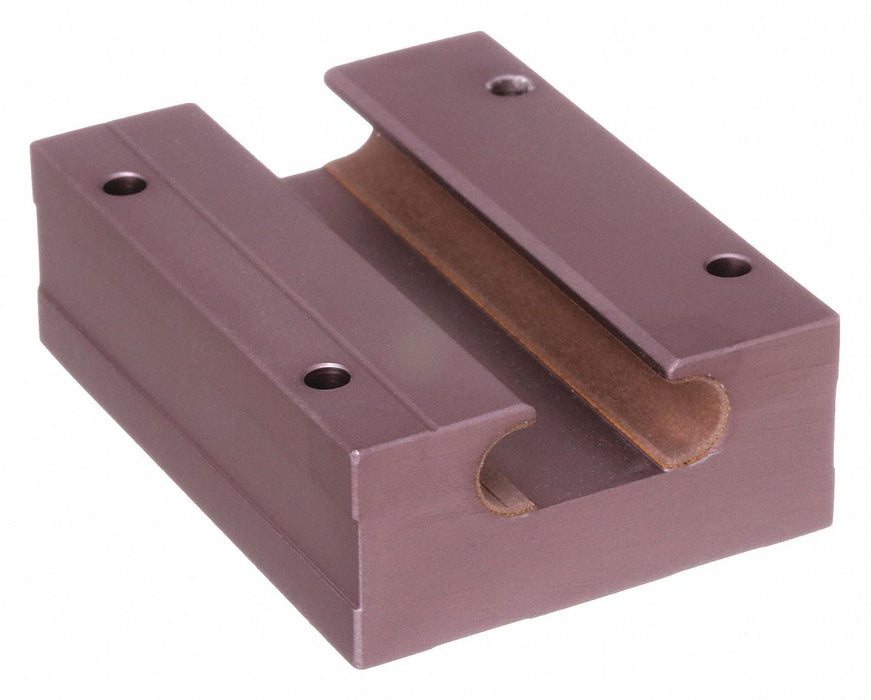

PBC Linear MRC20C Mini Rail Carriage, MiniRail Series, For 20 mm Rail Width, Aluminum

PBC Linear MRC20C Mini Rail Carriage, MiniRail Series, For 20 mm Rail Width, Aluminum

UPC: | Harmonization / Schedule B : 8483.30.8090

Country of Origin: United States | Shipping Weight: 0.25 lbs

$124.19 - $124.19
$124.19
$124.19 - $124.19
$124.19

Mini Rail Carriage, Carriage Height 21.2 mm, Carriage Length 62 mm, Carriage Width 46 mm, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 3,559 N, Axial Load - Maximum 578 N, Manufacturer Size 20, Dynamic Load Capacity 1,350 lbf, Requires Lubrication Lubricant Not Required, Carriage Type Slide, For Rail Width 20 mm, For Use With MiniRail Slides, Static Load Capacity 800 lbf, Combined Carriage and Rail Height 25 mm, Series MR

Type Miniature
Roller Material Aluminum
Carriage Material Aluminum
Static Load Capacity (Lb.) 800
Carriage Type Slide
Dynamic Load Capacity (Lb.) 1,350
Max. Pv 20,000
For Use With MiniRail Slides
Max. Speed (In/Sec) 60
Roller Type Slider
Roller Finish Ceramic Coated
Temp. Range (F) 0 to 400
Carriage Finish Anodized
Static Load Capacity 800 lbf
Maximum Operating Temperature 400 Degrees F
Series MR
Minimum Operating Temperature 0 Degrees F
Maximum Speed 60 in/sec
Dynamic Load Capacity 1,350 lbf
Maximum PV 20,000 lb/sq in-fpm
Number of Mounting Holes 4
Bearing Type Plain
Operating Temperature - Maximum 400 Degrees F
System of Measurement Metric
Speed - Maximum 60 in/sec
Requires Lubrication Lubricant Not Required
Radial Load - Maximum 3,559 N
Operating Temperature - Minimum 400 Degrees F
Bearing Retention Bearings Retained
Axial Load - Maximum 578 N
Accuracy Tolerance 20 mm
Country of Origin United States
