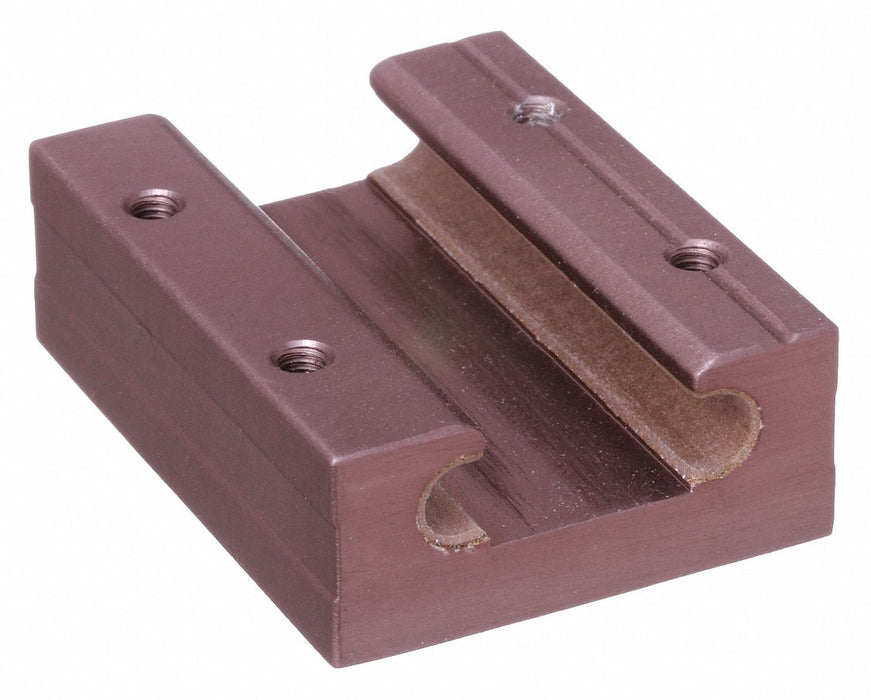

PBC Linear MRC15C Linear Slide Roller Carriage, MiniRail Series, For 15 mm Rail Width, Aluminum

PBC Linear MRC15C Linear Slide Roller Carriage, MiniRail Series, For 15 mm Rail Width, Aluminum

UPC: | Harmonization / Schedule B : 8483.30.8090

Country of Origin: United States | Shipping Weight: 0.05 lbs

$89.52 - $89.52
$89.52
$89.52 - $89.52
$89.52

Linear Slide Roller Carriage, Carriage Height 14.1 mm, Carriage Length 42 mm, Carriage Width 32 mm, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 2,224 N, Axial Load - Maximum 356 N, Manufacturer Size 15, Dynamic Load Capacity 700 lbf, Requires Lubrication Lubricant Not Required, Carriage Type Slide, For Rail Width 15 mm, For Use With MiniRail Slides, Static Load Capacity 500 lbf, Combined Carriage and Rail Height 16 mm, Series MR

Type Miniature
Roller Material Aluminum
Carriage Material Aluminum
Carriage Finish Anodized
Carriage Type Slide
Temp. Range (F) 0 to 400
For Use With MiniRail Slides
Max. Speed (In/Sec) 60
Roller Type Slider
Static Load Capacity (Lb.) 500
Roller Finish Ceramic Coated
Max. Pv 20,000
Dynamic Load Capacity (Lb.) 700
Dynamic Load Capacity 700 lbf
Minimum Operating Temperature 0 Degrees F
Series MR
Maximum Operating Temperature 400 Degrees F
Maximum Speed 60 in/sec
Maximum PV 20,000 lb/sq in-fpm
Static Load Capacity 500 lbf
Accuracy Tolerance 15 mm
Number of Mounting Holes 4
Operating Temperature - Minimum 400 Degrees F
Requires Lubrication Lubricant Not Required
Bearing Type Plain
Bearing Retention Bearings Retained
Axial Load - Maximum 356 N
System of Measurement Metric
Operating Temperature - Maximum 400 Degrees F
Radial Load - Maximum 2,224 N
Speed - Maximum 60 in/sec
Country of Origin United States
