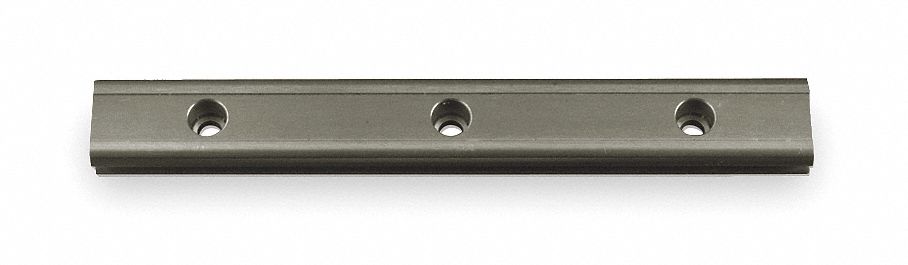

PBC Linear MR15R-1000 Miniature Profile Guide, Size 15, 1,000 mm Length, 15 mm Width, Aluminum

PBC Linear MR15R-1000 Miniature Profile Guide, Size 15, 1,000 mm Length, 15 mm Width, Aluminum

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.84 lbs

$224.12 - $224.12
$224.12
$224.12 - $224.12
$224.12

Miniature Profile Guide, Overall Length 1,000 mm, Overall Width 15 mm, Overall Height 9.2 mm, Rail Material Aluminum, Manufacturer Size 15, Number of Mounting Holes 25, Rail Finish Ceramic Coated, Rail Type Profile, System of Measurement Metric, For Use With Mini-Rail Carriages, Mounting Hole Center to Center 40 mm, Mounting Hole Center to Shaft End 20 mm, Series MR, Mounting Hole Size 3.5 mm

Raceway Ceramic Coated
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum -400 Degrees F
Number of Rail Holes 25
Mounting Hole from Shaft End 15 mm
Mounting Hole Center to Center 40 mm
Mounting Hole Center to Shaft End 20 mm
Mounting Hole Size 3.5 mm
Overall Length 1,000 mm
Overall Width 15 mm
Overall Height 9.2 mm
Weight 380 g
For Use With Mini-Rail Carriages
Type Mini-Rail
Rail Material Aluminum
Rail Finish Ceramic Coated
Series MR
Includes Rollers Rollers Not Included
Requires Lubrication Lubricant Not Required
System of Measurement Metric
Rail Type Profile
Country of Origin United States
