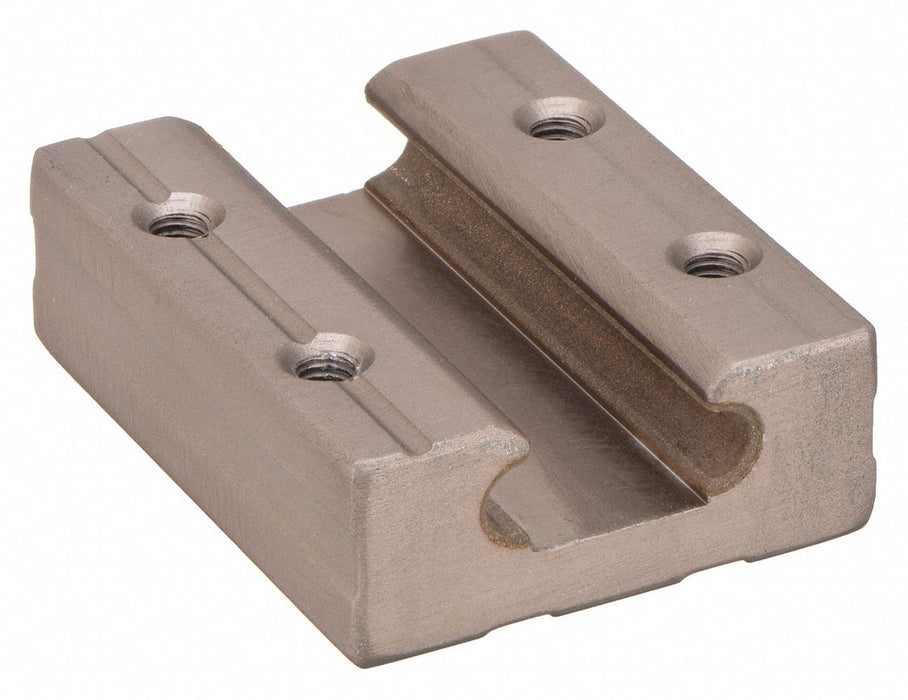

PBC Linear MR12C Linear Slide Roller Carriage, MiniRail Series, For 12 mm Rail Width, Aluminum

PBC Linear MR12C Linear Slide Roller Carriage, MiniRail Series, For 12 mm Rail Width, Aluminum

UPC: | Harmonization / Schedule B : 8483.30.8090

Country of Origin: United States | Shipping Weight: 0.05 lbs

$78.34 - $78.34
$78.34
$78.34 - $78.34
$78.34

Linear Slide Roller Carriage, Carriage Height 10.7 mm, Carriage Length 34 mm, Carriage Width 27 mm, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 1,334 N, Axial Load - Maximum 222 N, Manufacturer Size 12, Dynamic Load Capacity 440 lbf, Requires Lubrication Lubricant Not Required, Carriage Type Slide, For Rail Width 12 mm, For Use With MiniRail Slides, Static Load Capacity 300 lbf, Combined Carriage and Rail Height 13 mm, Series MR

Type Miniature
Roller Material Aluminum
Carriage Material Aluminum
For Use With MiniRail Slides
Static Load Capacity (Lb.) 300
Dynamic Load Capacity (Lb.) 440
Carriage Type Slide
Carriage Finish Anodized
Roller Type Slider
Max. Pv 20,000
Roller Finish Ceramic Coated
Temp. Range (F) 0 to 400
Max. Speed (In/Sec) 60
Dynamic Load Capacity 440 lbf
Maximum Speed 60 in/sec
Minimum Operating Temperature 0 Degrees F
Maximum Operating Temperature 400 Degrees F
Series MR
Maximum PV 20,000 lb/sq in-fpm
Static Load Capacity 300 lbf
Number of Mounting Holes 4
Bearing Type Plain
Speed - Maximum 60 in/sec
Operating Temperature - Maximum 400 Degrees F
Radial Load - Maximum 1,334 N
Axial Load - Maximum 222 N
Accuracy Tolerance 12 mm
Bearing Retention Bearings Retained
Requires Lubrication Lubricant Not Required
System of Measurement Metric
Country of Origin United States
