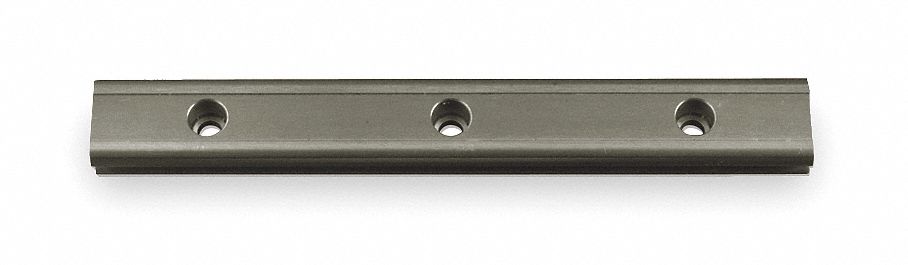

PBC Linear MR09R-1000 Miniature Profile Guide, Size 9, 1,000 mm Length, 9 mm Width, Aluminum

PBC Linear MR09R-1000 Miniature Profile Guide, Size 9, 1,000 mm Length, 9 mm Width, Aluminum

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.35 lbs

$245.05 - $245.05
$245.05
$245.05 - $245.05
$245.05

Miniature Profile Guide, Overall Length 1,000 mm, Overall Width 9 mm, Overall Height 7.1 mm, Rail Material Aluminum, Manufacturer Size 9, Number of Mounting Holes 50, Rail Finish Ceramic Coated, Rail Type Profile, System of Measurement Metric, For Use With Mini-Rail Carriages, Mounting Hole Center to Center 20 mm, Mounting Hole Center to Shaft End 10 mm, Series MR, Mounting Hole Size 2.6 mm

Raceway Ceramic Coated
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum -400 Degrees F
Number of Rail Holes 50
Mounting Hole from Shaft End 7.5 mm
Mounting Hole Center to Center 20 mm
Mounting Hole Center to Shaft End 10 mm
Mounting Hole Size 2.6 mm
Overall Length 1,000 mm
Overall Width 9 mm
Overall Height 7.1 mm
Weight 160 g
For Use With Mini-Rail Carriages
Type Mini-Rail
Rail Material Aluminum
Rail Finish Ceramic Coated
Series MR
Includes Rollers Rollers Not Included
Requires Lubrication Lubricant Not Required
System of Measurement Metric
Rail Type Profile
Country of Origin United States
