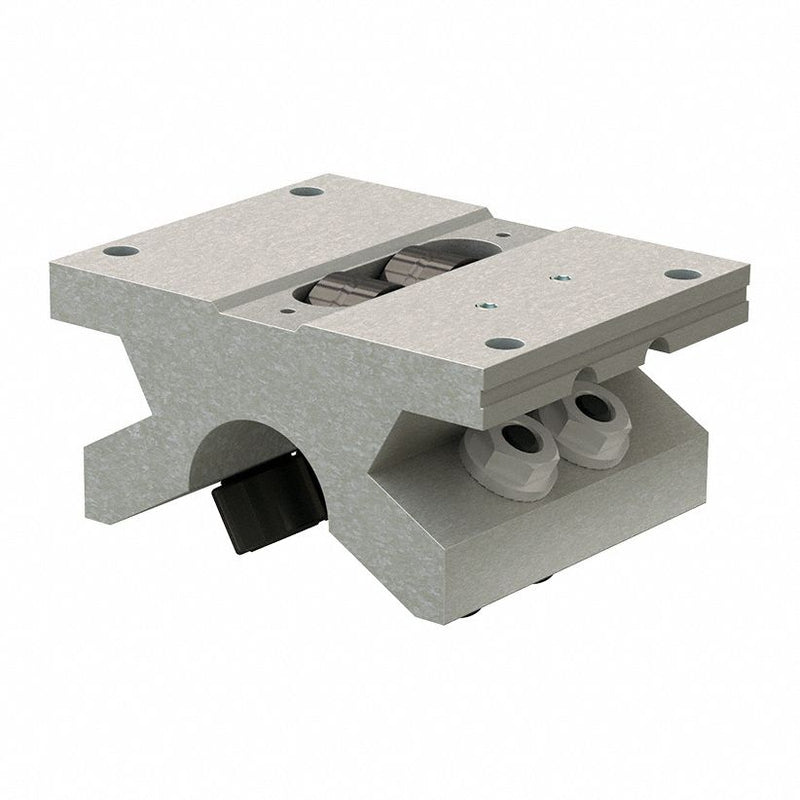

PBC Linear MDPB-25-OPN Double Roller Pillow Block, For 25 mm Round Shaft, 8,496.1 N Dynamic Load Rating

PBC Linear MDPB-25-OPN Double Roller Pillow Block, For 25 mm Round Shaft, 8,496.1 N Dynamic Load Rating

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 1.4 lbs

$830.73 - $830.73
$830.73
$830.73 - $830.73
$830.73

Double Roller Pillow Block, System of Measurement Metric, For Shaft Diameter 25 mm, Overall Length 66.68 mm, Overall Width 82.55 mm, Overall Height 2 in, Center Height 1.179 in, Dynamic Load Rating 8,496.1 N, Carriage Type Double, Mount Hole Center to Center Width 2.875 in, Mount Hole Center to Center Length 1.75 in, For Shaft Type Round, Mounting Hole Diameter 0.21875 in, Shaft Center to Mount Hole Width 1.375 in, Bearing Material Aluminum Alloy, Mounting Bolt Size #10

Bore Diameter 25 mm
Center Height 1.179 in
Mount Hole Center-to-Center Length 1-3/4 in
Mount Hole Size 0.21875 in
Overall Length 66.68 mm
Overall Width 82.55 mm
Overall Height 2 in
Shaft Center to Mount Hole Width 1.375 in
Mounting Bolt Size #10
Mount Hole Center-to-Center Width 2.875 in
System of Measurement Metric
Housing Material Aluminum Alloy
Bearing Material Aluminum Alloy
Standards ISO
For Shaft Type Round
Carriage Type Double
Resistance Properties Corrosion Resistance
Dynamic Load Rating 8,496.1 N
Lubricant Material Grease Lubrication
Country of Origin United States
