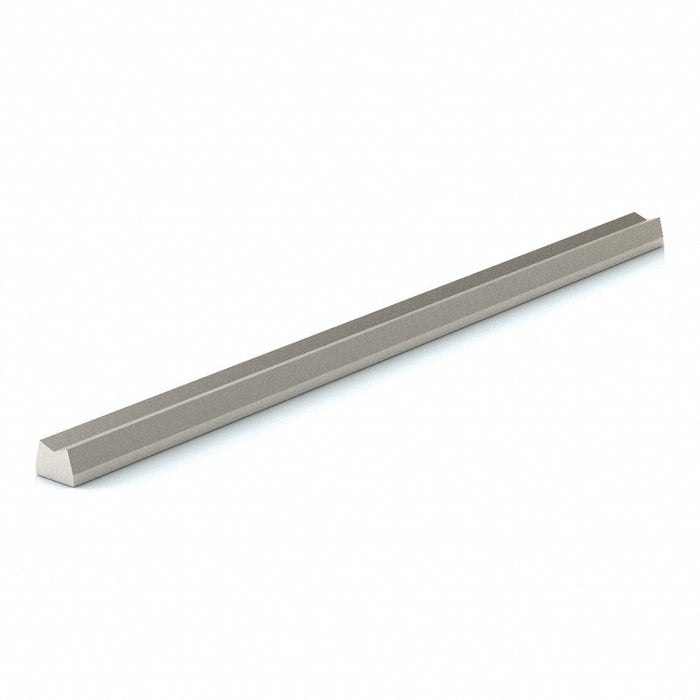

PBC Linear LSRM20-0300-SL Low-Profile Linear Shaft Support Rail, Steel, 20 mm Shaft Dia, 300 mm Lg

PBC Linear LSRM20-0300-SL Low-Profile Linear Shaft Support Rail, Steel, 20 mm Shaft Dia, 300 mm Lg

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 2.333 lbs

$34.10 - $34.10
$34.10
$34.10 - $34.10
$34.10

Linear Shaft Support Rail, System of Measurement Metric, Overall Length 300 mm, Material Steel, Finish Unfinished, Mounting Surface to Shaft Center 19.58 mm, Overall Width 12.95 mm, Overall Height 10.46 mm, Mystery Dimension 19.58 mm, Thread Size M6, Mounting Hole Center to Center 150 mm, Mounting Hole Center to Shaft End 75 mm, Base Height 10.46 mm, Profile Type Low Profile, Standards ISO, For Use With Linear Shafting, Mounting Hole Size 6 mm, Series LSRM, Compatible Shaft Diameter 20 mm

Material Steel
Finish Unfinished
Mounting Hole Center to Center 150 mm
For Use With Linear Shafting
System of Measurement Metric
Rail End to Hole 75 mm
Support Rail Material Steel
Shaft Material Grade 1018
Support Rail Material Grade 1018
Support Rail Drilling Undrilled
Standards ISO
Product Type Low Support Rail
Shaft Material Carbon Steel
Series LSRM
Profile Type Low Profile
Mounting Surface to Shaft Center 19.58 mm
Mounting Hole Center to Shaft End 75 mm
Country of Origin United States
